Shop DAYTON

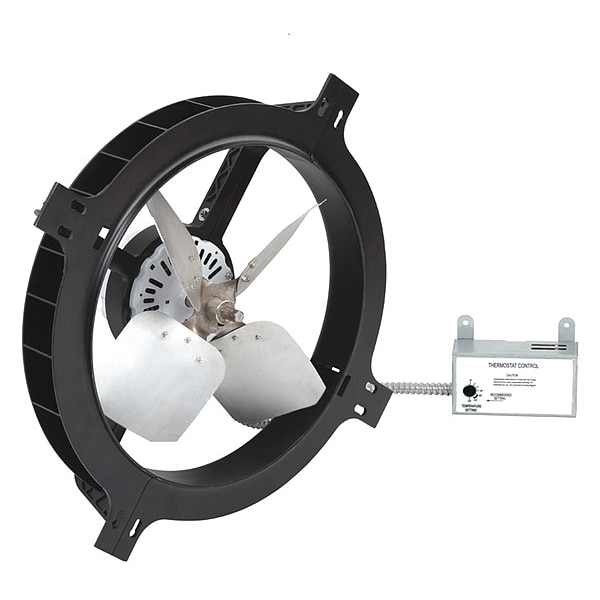

1650 CFM Gable Mount Attic Fan, 120V

  • Mfr # 10W197

  • Zoro # G4274742

product price:
$
95.15
/ea

Key Features

Voltage
120 VAC
Control Method - Roof Ventilators
Automatic
Max. Attic Area (Sq.-Ft.)
2,300 sq ft
Item - Roof Ventilators
Attic Ventilator
Hz
60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
10W197
Zoro #
G4274742
UPC #
190735110157
Country of Origin
China

Dimensions

Dome Dia. (In.)
15 1/4 in
Overall Diameter
17 in
Overall Length
21 in
Overall Width
21 in
Rough Opening Diameter
15 1/4 in
Overall Height
6 7/8 in
Wire Rope Length
21 in
Length
21 in

Details

Voltage
120 VAC
Control Method - Roof Ventilators
Automatic
Max. Attic Area (Sq.-Ft.)
2,300 sq ft
Item - Roof Ventilators
Attic Ventilator
Hz
60
HP
1/8 hp
Amps
4A
Watts
295 W
RPM
1,100 RPM
CFM @ 0.000-In. SP
1650
Free Air Intake Required (Sq.-Ft.)
5.4 sq ft
Opening Required (In.)
15-1/4
Thermostat Temp. (Deg. F)
60 to 120
Type
Thermostatically Controlled Gable Mount
Mounting Location - Roof Ventilators
Gable
Item
Attic Exhaust Fan
Includes
Mounting Brackets, Plastic Housing, Thermostat
Power Method - Roof Ventilators
120V
Included with Ventilator
Thermostat
For High-Static Pressure Applications
No
Blade Material
Steel
Includes Thermostat
Yes
Current
4 A
Exhaust Airflow @ 0.000 in SP
1,650 cfm
High-Efficiency Motor
No
Fire Safety Shut-Off
No
Control Type
Thermostat
Rough Opening Shape
Round
Motor Horsepower
1/8 hp
Housing Material
Plastic
Maximum Motor Speed
1,100 RPM
Maximum Attic Area
2,300 sq ft
Wattage
220 W
Thermostat Temperature Range
60 Degrees to 120 Degrees F
Frequency
60 Hz
Includes Shutter
No
Maximum Fan Speed
1,100 RPM
Airflow @ 0.000 in SP
1,650 cfm
Includes Humidistat
No
Includes Motor
Yes
Nameplate Voltage
120V AC
Power Source
Electric Motor
Power Source - TS Only
Electric Motor
Power Source - old
Electric Motor

Description

Attic Exhaust Fan, Control Type Thermostat, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 1,650 cfm, Fire Safety Shut-Off No, High-Efficiency Motor No, Housing Material Plastic, Includes Humidistat No, Includes Shutter No, Includes Thermostat Yes, Maximum Attic Area 2,300 sq ft, Motor Horsepower 1/8 hp, Mounting Location Gable, Nameplate Voltage 120V AC, Overall Diameter 17 in, Overall Height 6 7/8 in, Overall Length 21 in, Overall Width 21 in, Dome Shape Not Applicable

Restrictions

This item has been restricted from sale in the following states: NJ
