Shop DAYTON

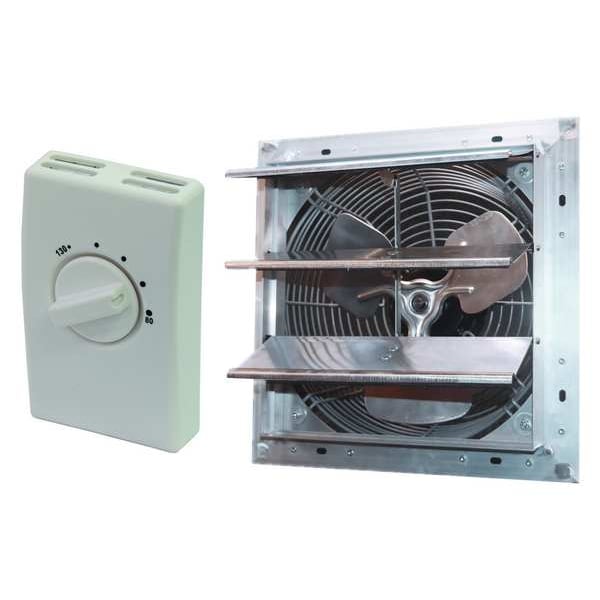

Ventilator Combo Kit, Gable Mount, 120 V, Hz: 60

  • Mfr # 347HX8

  • Zoro # G3011875

product price:
$
176.99
/ea
Free Shipping & Returns

Key Features

Control Method - Roof Ventilators
Automatic
Max. Attic Area (Sq.-Ft.)
1,600 sq ft
Item - Roof Ventilators
Exhaust Ventilator
Hz
60
HP
1/30 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
347HX8
Zoro #
G3011875
UPC #
-
Country of Origin
China

Dimensions

Overall Length
8 in
Overall Width
15 1/4 in
Rough Opening Length
12 1/2 in
Rough Opening Width
12.5 in
Overall Height
15 1/4 in
Wire Rope Length
8 in
Length
8 in

Details

Control Method - Roof Ventilators
Automatic
Max. Attic Area (Sq.-Ft.)
1,600 sq ft
Item - Roof Ventilators
Exhaust Ventilator
Hz
60
HP
1/30 hp
Amps
1.4
RPM
1,550 RPM
CFM @ 0.000-In. SP
800
CFM @ 0.125-In. SP
470 cfm
Free Air Intake Required (Sq.-Ft.)
4 sq ft
Opening Required (In.)
13 x 13
Thermostat Temp. (Deg. F)
90 to 130
Power Method - Roof Ventilators
120V
Item
Attic Exhaust Fan
Includes
Guard, Shutter, Thermostat
Mounting Location - Roof Ventilators
Gable
Includes Motor
Yes
Wattage
66 W
Includes Humidistat
No
Fire Safety Shut-Off
No
Includes Shutter
Yes
Maximum Fan Speed
1,550 RPM
Control Type
Thermostat
Thermostat Temperature Range
90 Degrees to 130 Degrees F
Includes Thermostat
Yes
Exhaust Airflow @ 0.000 in SP
844 cfm
Rough Opening Shape
Square
Blade Material
Aluminum
Airflow @ 0.000 in SP
800 cfm
Airflow @ Static Pressure
470 cfm @ 1/8 in
Motor Horsepower
1/30 hp
High-Efficiency Motor
No
Housing Material
Aluminum
Exhaust Airflow @ 0.125 in SP
401 cfm
Current
1.4 A
Power Source
Electric Motor
Maximum Motor Speed
1,550 RPM
Maximum Attic Area
1,600 sq ft
For High-Static Pressure Applications
No
Nameplate Voltage
120V AC
Frequency
60 Hz
Power Source - TS Only
Electric Motor
Power Source - old
Electric Motor

Description

Attic Exhaust Fan, Control Type Thermostat, Blade Material Aluminum, Exhaust Airflow @ 0.000 in SP 844 cfm, Fire Safety Shut-Off No, High-Efficiency Motor No, Housing Material Aluminum, Includes Humidistat No, Includes Shutter Yes, Includes Thermostat Yes, Maximum Attic Area 1,600 sq ft, Motor Horsepower 1/30 hp, Mounting Location Gable, Nameplate Voltage 120V AC, Overall Height 15 1/4 in, Overall Length 8 in, Overall Width 15 1/4 in, Dome Shape Not Applicable, Dome Width Not Applicable
