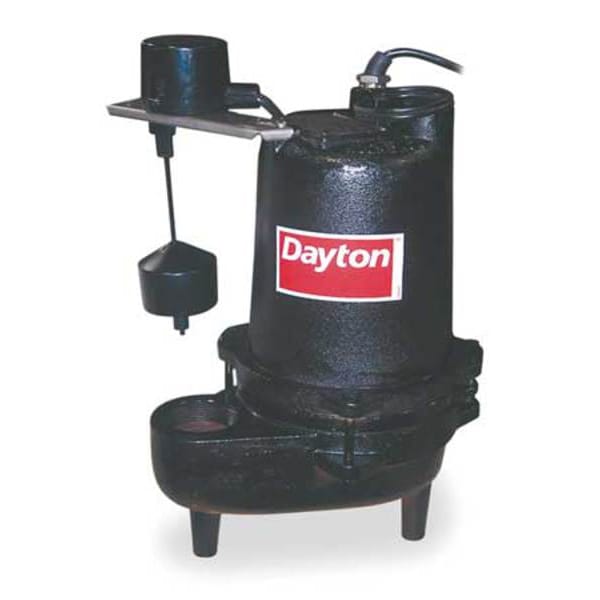

4/10 HP 2" Auto Submersible Sewage Pump 115V Vertical

  • Mfr # 4LE12

  • Zoro # G1255992


product price: $802.99
/ea
Free Shipping & Returns

Key Features

HP
4/10
Phase - Pumps
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Base Material
303 Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4LE12
Zoro #
G1255992
UPC #
190735329474
Country of Origin
China

Dimensions

Max. Diameter Solids
2 in
Max. Dia. Solids
2"
Height
16-3/4"
Cord Length
20 ft
Cord Length - Pumps
20 ft.
Diameter
16-23/32"
Overall Height
16 3/4 in
Body Dia.
16 23/32 in
Discharge Dia.
2 in
Solids Diameter - Maximum
2 in
Discharge Diameter
2 in
Body Diameter
16 3/4 in

Details

HP
4/10
Phase - Pumps
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Base Material
303 Stainless Steel
Flow Rate @ 10 Ft. of Head
95 gpm
Max. Head
25 ft
Impeller Material
Cast Iron
GPM of Water @ 10 Ft. of Head
95
GPM of Water @ 25 Ft. of Head
5
Agency Compliance
CSA
Pump Type
Automatic
Input Phase AC
1
Item
Sewage Ejector Pump
Discharge NPT
2"
Switch Type
Vertical
Voltage
115
Shaft Seal Material - Pumps
Carbon Ceramic
Voltage - Pumps
120VAC
Impeller Material - Pumps
Cast Iron
Switch Type - Pumps
Vertical
Item - Sewage Pumps
Submersible Sewage Pump
Max. Liquid Temp.
77 Degrees F
Thermal Protection
Yes
GPM of Water @ 20 Ft. of Head
37
Phase
Single
Housing Material
Cast iron
Motor Type
PSC
GPM of Water @ 15 Ft. of Head
70
Max Head - Pumps
25 ft.
GPM of Water @ 5 Ft. of Head
115
Max. Head - Pumps
25 ft.
Pump Body Material
Cast Iron
Amps - Pumps
12.00
Motor RPM
1750
Amps
12.00 A
Shaft Seal
Silicon Carbide
Bearing Type
Ball
Rated Voltage
120V AC
RPM
1,750 RPM
Flow Rate @ 20 Ft. of Head
37 gpm
Flow Rate @ 15 Ft. of Head
70 gpm
Switch Electrical Connection
Piggyback
Discharge Standard
NPT
Discharge
2 in NPT
Standards
CSA
Type
Automatic
Flow Rate @ 10 ft of Head
95 gpm
Rotation Speed - Maximum
1,750 RPM
Horsepower
2/5 hp
Feet of Head - Maximum
25 ft
Liquid Temperature - Maximum
77 Degrees F
Current
12.00 A
Shaft Seal Material
Carbon/Ceramic

Description

Sewage Ejector Pump, HP 4/10, Rated Voltage 120V AC, Phase - Pumps 1, Amps 12.00 A, Motor Type PSC, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon Ceramic, Switch Actuation Vertical Float, Switch Electrical Connection Piggyback, On Point Not Applicable, Off Point Not Applicable, Flow Rate @ 10 Ft. of Head 95 gpm, Flow Rate @ 15 Ft. of Head 70 gpm, Flow Rate @ 20 Ft. of Head 37 gpm, Max. Diameter Solids 2 in, Body Dia. 16 23/32 in
