1 HP 2" Auto Submersible Sewage Pump 230V Vertical

Mfr # 4LB99
Zoro # G3473373

1,474.99

Free Shipping & Returns

Zoro's best price: not eligible for any other offers or promotions

Key Features

Phase - Pumps

Switch Actuation

Vertical Float

Body Material

Cast Iron

Base Material

303 Stainless Steel

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 4LB99
Zoro #: G3473373
UPC #: 190735329443
Country of Origin: China

Dimensions

Max. Diameter Solids: 2 in
Height: 21-1/4"
Cord Length - Pumps: 20 ft.
Cord Length: 20 ft
Diameter: 16-3/4"
Max. Dia. Solids: 2"
Overall Height: 21 1/4 in
Body Dia.: 16 3/4 in
Discharge Dia.: 2 in
Solids Diameter - Maximum: 2 in
Discharge Diameter: 2 in
Body Diameter: 16 3/4 in

Details

HP: 1
Phase - Pumps: 1
Switch Actuation: Vertical Float
Body Material: Cast Iron
Base Material: 303 Stainless Steel
Flow Rate @ 10 Ft. of Head: 195 gpm
Max. Head: 36 ft
Impeller Material: Cast Iron
Housing Material: Cast iron
Switch Type - Pumps: Vertical
Shaft Seal: Silicon Carbide
Agency Compliance: CSA
Impeller Material - Pumps: Cast Iron
GPM of Water @ 20 Ft. of Head: 130
Discharge NPT: 2"
Voltage: 200 to 230
Item: Sewage Ejector Pump
Max. Liquid Temp.: 104 Degrees F
Max. Head - Pumps: 36 ft.
Pump Body Material: Cast Iron
GPM of Water @ 30 Ft. of Head: 48
Thermal Protection: Yes
Shaft Seal Material - Pumps: Silicone Carbide
Switch Type: Vertical
Amps - Pumps: 8.30
Bearing Type: Ball
Voltage - Pumps: 200 to 240VAC
Motor Type: PSC
GPM of Water @ 25 Ft. of Head: 95
Input Phase AC: 1
Amps: 8.30 A
Phase: Single
Item - Sewage Pumps: Submersible Sewage Pump
GPM of Water @ 15 Ft. of Head: 165
Motor RPM: 1750
GPM of Water @ 10 Ft. of Head: 195
Pump Type: Automatic
Switch Electrical Connection: Piggyback
Flow Rate @ 20 Ft. of Head: 130 gpm
Flow Rate @ 15 Ft. of Head: 165 gpm
Rated Voltage: 200 to 240V AC
RPM: 1,750 RPM
Discharge Standard: NPT
Discharge: 2 in NPT
Standards: CSA
Type: Automatic
Current: 8.30 A
Feet of Head - Maximum: 36 ft
Flow Rate @ 10 ft of Head: 195 gpm
Shaft Seal Material: Silicon Carbide
Horsepower: 1 hp
Rotation Speed - Maximum: 1,750 RPM
Liquid Temperature - Maximum: 104 Degrees F

Description

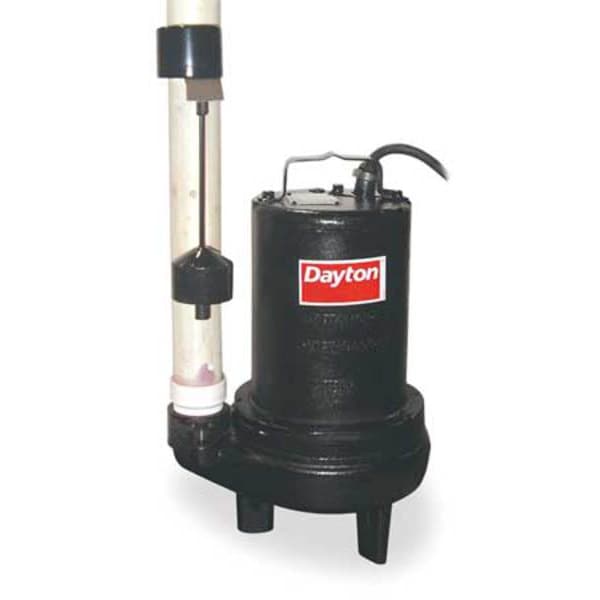

Sewage Ejector Pump, HP 1, Rated Voltage 200 to 240V AC, Phase - Pumps 1, Amps 8.30 A, Motor Type PSC, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Silicone Carbide, Switch Actuation Vertical Float, Switch Electrical Connection Piggyback, On Point Not Applicable, Off Point Not Applicable, Flow Rate @ 10 Ft. of Head 195 gpm, Flow Rate @ 15 Ft. of Head 165 gpm, Flow Rate @ 20 Ft. of Head 130 gpm, Max. Diameter Solids 2 in, Body Dia. 16 3/4 in
