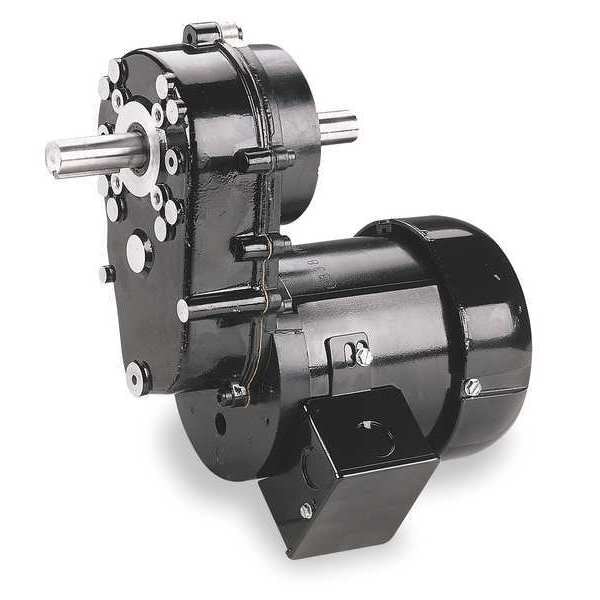

Dayton AC Gearmotor, 1,100 in-lb Max. Torque, 12 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase 1L509 - main

AC Gearmotor, 1,100 in-lb Max. Torque, 12 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

  • Mfr # 1L509

  • Zoro # G2676091

product price:  $1,134.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
1,100 in-lb
Gearmotor Shaft Type
Double
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1L509
Zoro #
G2676091
UPC #
190735142424
Country of Origin
United States

Dimensions

Length Less Shaft
9.75 in
Shaft Length (Dimension V)
2_x000D_ in
Dimension A
2.35/1-1/4 in
Shaft Dia. (Dimension U)
3/4 in
Output Shaft Diameter
3/4 in
Output Shaft Length
2 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
1,100 in-lb
Gearmotor Shaft Type
Double
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
12 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
2.4/1.2
Standards
CE, CSA, UL Recognized
Input HP
1/4 hp
Gear Material
Hardened Steel
RPM @ 50 Hz
10 RPM
Gear Ratio
138:1
Capacitor Required
Yes
Gears
1st Stage Helical, AGMA Class 9, Hardened Steel, Subsequent Stages Spur
Shaft
Dual Output
Brake
Adaptable to 5X400
Motor Type
Permanent Split Capacitor
RPM Range
0 to 15
Seals
Lip Type on Input and Output Shaft
Max. Ambient Temp.
40 Degrees C
Hz
60/50 Hz
Phase
Single
Housing
Die Cast Aluminum
Enclosure
TEFC
Voltage
115/230
Bearings
Ball on Motor, Heavy Duty Ball and Needle Roller on Case
Rotation
CW/CCW
Mounting
All Position
Shaft Orientation
Inline
Overhung Load
550 lb
Lubrication
Permanent Heavy Duty Gear Oil
Gear Type
Helical (1st Stage), Spur (Subsequent Stages)
Gear Case Material
Die Cast Aluminum
Thermal Protection
None
Application
Washdown
Housing Material
Die Cast Aluminum
Full Load Current
2.4/1.2 A
Brake Type
None
Inverter Rating
138:1
Inverter Rated
No
AGMA Gear Class
Class 9
Number of Output Shafts
2
Maximum Torque
1,100 in-lb
Motor Enclosure
Totally Enclosed Fan-Cooled
Bearing Type
Ball on Motor, Heavy Duty Ball and Needle Roller on Case
Operating Voltage
115/230V AC
Frequency
50 Hz, 60 Hz
Input Horsepower
0.25 hp
Nameplate Speed
12 RPM
Seal Type
Lip Type on Input and Output Shaft
Overhung Load Capacity
550 lb
Mount Type
Any Position
Mounting Orientation
Any Angle
Maximum Ambient Temperature
104 Degrees F

Description

AC Gearmotor, Number of Output Shafts 2, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 12 RPM, Maximum Torque 1,100 in-lb, Overhung Load Capacity 550 lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 138:1, Brake Type None, Shaft Orientation Inline, AGMA Gear Class Class 9, Application Washdown
