Shop FASCO

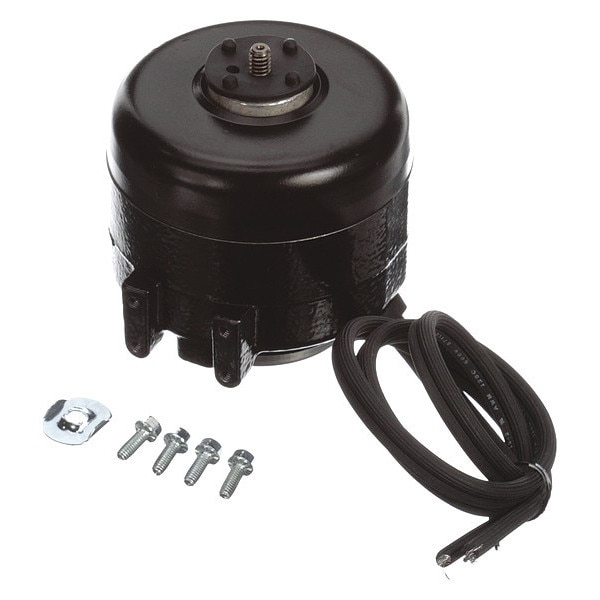

Unit Bearing Motor

  • Mfr # UB567

  • Zoro # G9755943

product price:  $59.29
/ea

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
16 W
HP
1/50
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UB567
Zoro #
G9755943
UPC #
786674070265
Country of Origin
China

Dimensions

Overall Length
3 5/8 in
Length Less Shaft
3 1/16 in
Bolt Circle Dia.
2 13/16 in
Shaft Dia.
1/4 in
Body Dia.
3 7/16 in
Mounting Stud Length
3/8 in
Shaft Length
7/16 in
Lead Length
28 in
Frame Size
Non-Standard
Shaft Diameter
1/4 in
Body Diameter
3.4 in
Bolt Circle Diameter
2 13/16 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
16 W
HP
1/50
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CCWLE
Nameplate RPM
1,550
Frame
Non-Standard
Motor Enclosure Design
Totally Enclosed Air-Over
Item
Unit Bearing Motor
Full Load Amps
0.8 A
Frame Material
Cast Iron
Max. Ambient Temp.
40 Degrees C
Includes
Speed Nut and Screw
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Standards
UL and CSA
Motor Mounting Position
All Angle
Motor Design
Shaded Pole
Motor Mounting Type
Rear/Double Foot
Motor Frame Material
Cast Iron
Motor Shaft Design
Threaded
Motor Bearings
Unit
Motor Service Factor
1
Ins. Class
B
Hz
60 Hz
Stud Quantity
2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting)
Mounting Stud Pattern
1 1/8 in x 5/8 in (L, S Mounting), 2 13/16 in (E, G Mounting)
No. of Speeds
1
Weight
4 lb
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Features
Totally Enclosed Air Over
Drive Type
Direct Drive
Mounting Position
All Angle
Bearing Type
Unit
Number of Speeds
1
Wattage
16 W
Insulation Class
B
Sub Application
Unit Bearing
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Totally Enclosed Air-Over
Full Load Current @ 60 Hz
0.8 A
Duty
Continuous
Shaft Design
Threaded
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Product Type
Unit Bearing Motor

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/50 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.8 A Full Load Amps, Non-Standard Frame, Output Watts 16 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Double Foot
