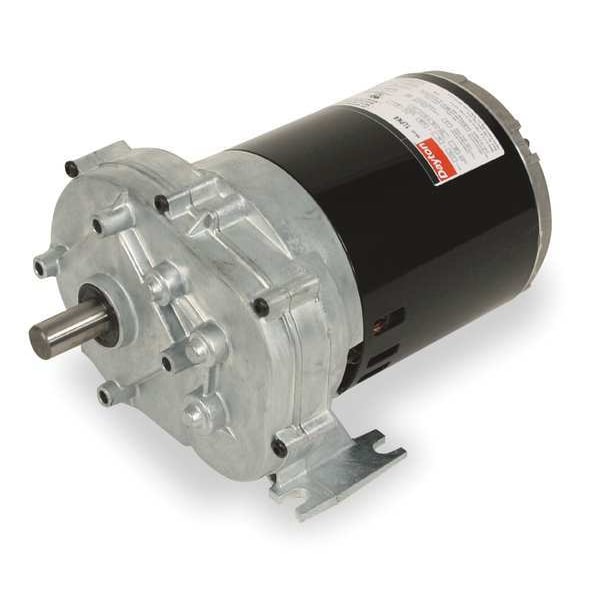

AC Gearmotor, 150 in-lb Max. Torque, 90 RPM Nameplate RPM, 115V AC Voltage, 1 Phase
Mfr # 1LPP1
Zoro # G0300727
product price:Â $817.99
/ea
Free Shipping & Returns
Key Features
Gearmotor Voltage
115V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
150 in-lb
Gearmotor Shaft Type
Single
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
1LPP1
Zoro #
G0300727
UPC #
190735144176
Country of Origin
United States
Dimensions
Length Less Shaft
9.28 in
Keyway Size Type
#605 Woodruff Key
Shaft Dia. (Dimension U)
3/4 in
Keyway Size
#605 Woodruff Key
Shaft Length (Dimension V)
1.5 in_x000D_
Overall Width
8.13 in
Overall Height
6 in
Mount Hole Center-to-Center Width
7.13 in
Output Shaft Length
1 1/2 in
Output Shaft Height
3 in
Output Shaft Diameter
3/4 in
Mount Hole Center-to-Center Length
2.38 in
Keyway Width
3/16 in
Keyway Depth
5/8 in
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Split-Phase, Motor Enclosure Open Dripproof, Nameplate Speed 90 RPM, Maximum Torque 150 in-lb, Overhung Load Capacity 150 lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 19:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B, Motor Duty Class Continuous, AGMA Gear Class Class 9
