  11. Pool Pump Motor, Capacitor-Start/Run, 1 1/2 HP, 48Y Frame, 3,450 Nameplate RPM
Shop All Pool Pump Motors
Century

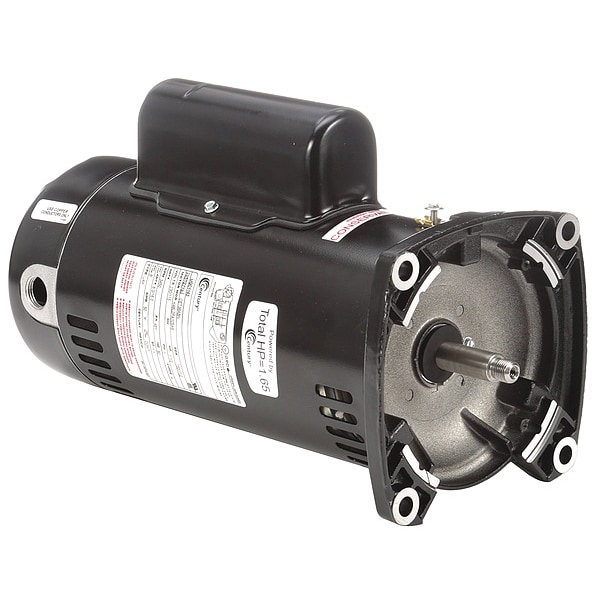

Pool Pump Motor, Capacitor-Start/Run, 1 1/2 HP, 48Y Frame, 3,450 Nameplate RPM

product price: $363.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start/Run
  • Motor Enclosure Design Open Dripproof
  • HP 1 1/2
  • RPM Range 3,001-3,600
  • Motor Service Factor 1.1
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Shaft Length 1 in
Length Less Shaft 13 1/16 in
Body Dia. 5.6 in
Overall Length 13 15/16 in
Height 11 in
Shaft Dia. (In.) 5/8

Details

Item Pool Pump Motor
Motor Design Capacitor-Start/Run
Motor Enclosure Design Open Dripproof
HP 1 1/2
RPM Range 3,001-3,600
Motor Service Factor 1.1
Nameplate RPM 3,450
Frame 48Y
Motor Shaft Rotation CCWSE
Voltage 115/230V AC
Phase Single
Full Load Amps 16.0/8.0
Motor Mounting Type Face
Shaft Material Stainless Steel
Shaft Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
Motor Application Pump
Motor Thermal Protection Auto
Ins. Class B
Motor Efficiency Group Energy Efficient
Design Two Compartment
Max. Ambient Temp. 50 Degrees C
Motor Sub Application Pool and Spa Pump
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Hz 60 Hz
Motor Bearings Ball
Standards CSA, UL
No. of Speeds 1
Duty Cycle Continuous
Motor Frame Material Steel
Usable @ 200V No
Usable @ 208V No
Motor Mounting Position Horizontal
Weight 30 lb
Motor Shaft Design Threaded

Description

Pool Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60 Hz, Full Load Amps 16.0/8.0, Height 11 in, HP 1 1/2, Ins. Class B, Length Less Shaft 13 1/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

  • This item has been restricted from sale in the following states: AZ, CA, FL, NY
