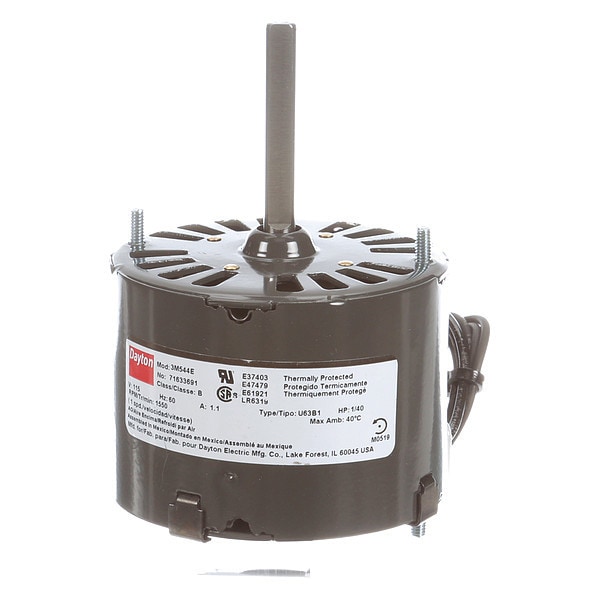

Dayton HVAC Motor, 1/40 HP, 1550 rpm, 115V, 3.3 71633691M - main

HVAC Motor, 1/40 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71633691M

  • Zoro # G3195911

product price:  $64.79
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/40
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
71633691M
Zoro #
G3195911
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Cord Length
12 in
Shaft Length
2 5/16 in
Length Less Shaft
3 1/8 in
Shaft Dia.
5/16 in
Body Diameter
3.3 in
Overall Length
4 3/4 in
Frame Size
3.3
Shaft Diameter
5/16 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/40
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Design
Flat
Motor Shaft Rotation
CCWSE
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Motor Mounting Type
Ring/Stud
Hz
60 Hz
Standards
CSA Certified, UL Recognized
Motor Sub Application
Direct Drive Fan/Blower
Ins. Class
B
No. of Speeds
1
Motor Thermal Protection
Auto
Full Load Amps
1.1 A
Stud/Base Mtg. Pattern
2-7/8 in
Motor Service Factor
1
Item
HVAC Motor
Number of Shafts
1
Max. Ambient Temp.
40 Degrees C
Mounting Pattern
2-7/8
Motor Bearings
Sleeve
Frame
3.3
Duty
Continuous
Phase
Single
Mounting Stud Location
2/Both Ends
Motor Application
HVAC/R
Motor Design
Shaded Pole
Capacitor Required
Capacitor Not Required
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
All Angle
Usable @ 200V
Not Usable at 200V
Mounting Stud Pattern
2 7/8 in
Duty Cycle
Continuous
Mounting
Stud
Type
OEM Replacement
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Wattage
19 W
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
1.1 A
Bearing Type
Sleeve
Drive Type
Direct Drive
Frequency
60 Hz
Sub Application
General Purpose
Frame Material
Steel
Shaft Design
Flat
Motor Enclosure Type
Open Air Over

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/40 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.1 A Full Load Amps, 3.3 Frame, Output Watts 19 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
