Shop DAYTON

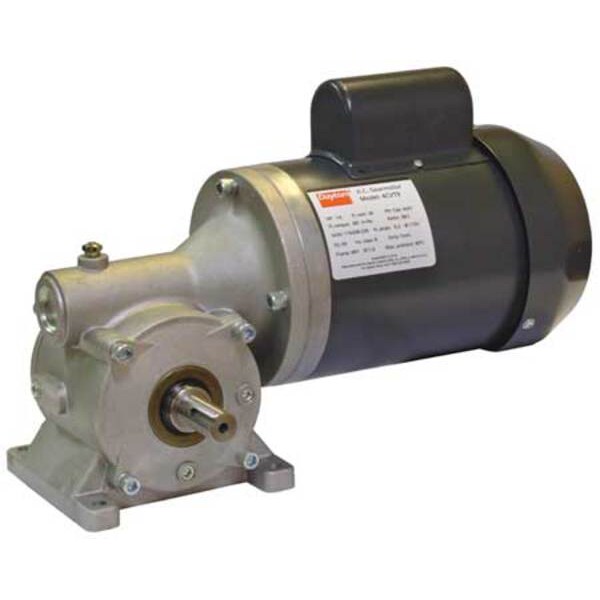

AC Gearmotor, 163 in-lb Max. Torque, 100 RPM Nameplate RPM, 115/208-230V AC Voltage, 1 Phase

  • Mfr # 4CUK7
  • Zoro # G2027304
product price:
$
1,416.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/208-230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
163 in-lb
Gearmotor Shaft Type
Single Left
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4CUK7
Zoro #
G2027304
UPC #
190735322659
Country of Origin
China
Item
AC Gearmotor
Gearmotor Voltage
115/208-230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
163 in-lb
Gearmotor Shaft Type
Single Left
Gearmotor Shaft Orientation
Right Angle
Nameplate RPM
100 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
5.6/2.8 A
Standards
CE Certified, CSA Certified, UL Recognized
Input HP
1/3 hp
Includes
Capacitor
Shaft Orientation
Right Angle
Overhung Load
670 lb
Bearings
Ball on Motor, Roller on Case
Phase
Single
Hz
60 Hz
Motor Type
Capacitor-Start
Voltage
115/208-230
Insulation Class
b
Lubrication
Oil Filled
Enclosure
TEFC
Gear Case Material
Die Cast Aluminum
Rotation
CW/CCW
Mounting
All Position
RPM Range
76 to 100
Gears
Forged Bronze Output Gear, Hardened Steel Worm
Seals
Lip
Max. Ambient Temp.
40 Degrees C
Starting Torque
720 in-lb
Shaft
Single
Gear Ratio
18:1
Thermal Protection
None
Gear Type
Worm
Application
Inverter Duty
Gear Material
Hardened Steel/Forged Bronze
Capacitor Required
Yes
Keyway Type
Woodruff
Housing Material Finish
Stainless Steel Paint
Maximum Torque
1,770 in-lb
Nameplate Speed
100 RPM
Mount Type
Any Position
Motor Insulation Class
B
Number of Output Shafts
1
Operating Voltage
115/208-230V AC
Bearing Type
Ball on Motor, Roller on Case
Frequency
50 Hz, 60 Hz
Full Load Current
1.9/0.95 A
Maximum Ambient Temperature
104 Degrees F
Overhung Load Capacity
1,530 lb
Brake Type
None
Output Location
Left Hand
Mounting Orientation
Any Angle
Input Horsepower
0.5 hp
Seal Type
Lip
Motor Enclosure
Totally Enclosed Fan-Cooled

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Capacitor-Start, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 100 RPM, Maximum Torque 1,770 in-lb, Overhung Load Capacity 1,530 lb, Rotation CW/CCW, Output Shaft Height 2.5 in, Mounting Orientation Any Angle, Operating Voltage 115/208-230V AC, Gear Ratio 18:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Motor Insulation Class B, Application Inverter Duty
