Dayton AC Gearmotor, 30 in-lb Max. Torque, 95 RPM Nameplate RPM, 115V AC Voltage, 1 Phase 6A197 - main

AC Gearmotor, 30 in-lb Max. Torque, 95 RPM Nameplate RPM, 115V AC Voltage, 1 Phase

  • Mfr # 6A197

  • Zoro # G0711986

product price:  $487.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
30 in-lb
Gearmotor Shaft Type
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6A197
Zoro #
G0711986
UPC #
190735359624
Country of Origin
United States

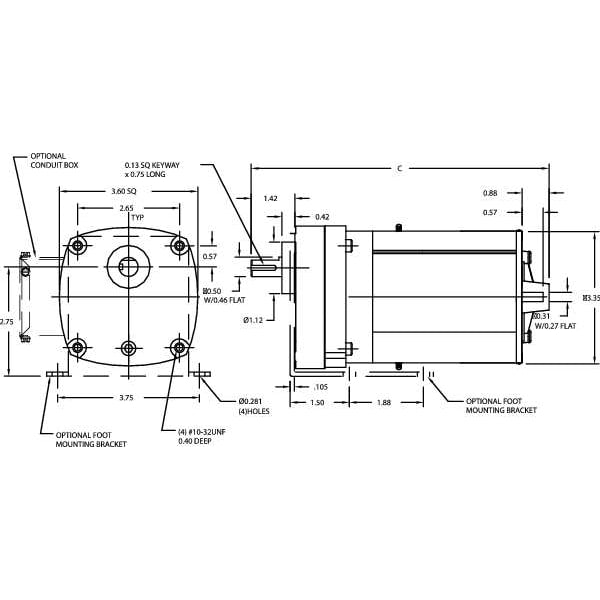

Dimensions

Length Less Shaft
7.38 in
Shaft Length (Dimension V)
1"
Dimension C
8.41 in
Dimension X
2.1"
Shaft Dia. (Dimension U)
1/2 in
Dimension L
4.34"
Overall Height
3.63 in
Overall Width
3.63 in
Mount Hole Center-to-Center Length
1.63 in
Output Shaft Length
1 in
Output Shaft Height
1 in
Keyway Depth
0 in
Mount Hole Center-to-Center Width
2.63 in
Output Shaft Diameter
1/2 in
Keyway Width
1/8 mm

Details

Item
AC Gearmotor
Gearmotor Voltage
115V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
30 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
95 RPM
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
0.6
Standards
C-UL Recognized, UL Recognized
Input HP
1/20 hp
Brake
Adaptable to 5X400
Overhung Load
90 lb
Lubrication
Permanent Heavy Duty Gear Oil
Seals
Spring Loaded Lip Type on Input and Output Shaft
Gear Ratio
17:1
Capacitor Required
Yes
Mounting
All Position
Phase
Single
Gear Case Material
Die Cast Aluminum
Max. Ambient Temp.
40 Degrees C
Thermal Protection
None
Shaft Orientation
Parallel
Bearings
Ball on Motor, Heavy Duty Needle on Case
Rotation
CW/CCW
Gear Material
Steel or Heat Treated Powdered Metal
Hz
60 Hz
Motor Type
Permanent Split Capacitor
Gears
1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
Enclosure
TENV
Gear Type
Helical (1st Stage), Spur (Subsequent Stages)
Housing
Die Cast Aluminum
Voltage
115
RPM Range
76 to 100
Housing Material
Die Cast Aluminum
Compatible Capacitor Manufacturer Part Number
2MDV6
Overhung Load Capacity
90 lb
Inverter Rated
No
Maximum Ambient Temperature
104 Degrees F
Nameplate Speed
95 RPM
Seal Type
Spring Loaded Lip Type on Input and Output Shaft
Frequency
60 Hz
Full Load Current
0.6 A
Mounting Orientation
Any Angle
Inverter Rating
17:1
Number of Output Shafts
1
Maximum Torque
30 in-lb
Brake Type
None
Motor Enclosure
Totally Enclosed Nonventilated
Operating Voltage
115V AC
Keyway Type
Rounded
Mount Type
Any Position
Input Horsepower
0.05 hp
Bearing Type
Ball on Motor, Heavy Duty Needle on Case

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Nonventilated, Nameplate Speed 95 RPM, Maximum Torque 30 in-lb, Overhung Load Capacity 90 lb, Rotation CW/CCW, Output Shaft Height 1 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 17:1, Brake Type None, Shaft Orientation Parallel, Compatible Capacitor Manufacturer Part Number 2MDV6
