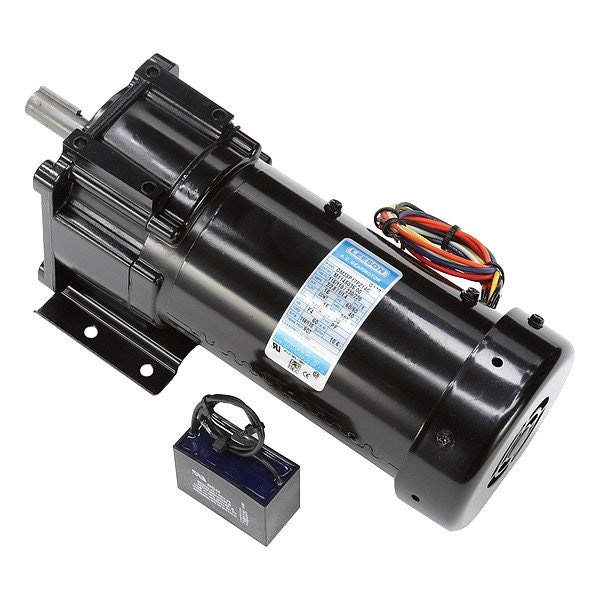

AC Gearmotor, 230V, 156RPM
Mfr # M1145035.00
Zoro # G311935050
product price:Â
$
852.99
/ea
Free Shipping & Returns
Key Features
Length Less Shaft
10.63 in
Standards
CE, CSA Certified, UL Listed
Lubrication
Semi-Fluid Grease
Motor Enclosure
Totally Enclosed Fan-Cooled
Features
Permanent Semi-Fluid Grease Lubrication
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- M1145035.00
- Zoro #
- G311935050
- UPC #
- 691720092187
- Country of Origin
- United States
Dimensions
- Length Less Shaft
- 10.63 in
- Output Shaft Diameter
- 5/8 in
- Overall Width
- 4.06 in
- Mount Hole Center-to-Center Length
- 1.66 in
- Output Face Bolt Circle Diameter
- 0.23 in
- Overall Length
- 12.13 in
- Keyway Depth
- 3/16 in
- Overall Height
- 5.13 in
- Keyway Length
- 1 in
- Output Shaft Length
- 1 1/2 in
- Housing Mount Hole Size
- 1/4"-20
- Output Shaft Height
- 3.5 in
- Wire Rope Length
- 12.13 in
- Length
- 12.13 in
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 156 RPM, Maximum Torque 60 in-lb, Overhung Load Capacity 201 lb, Rotation CCW, Output Shaft Height 3.5 in, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 10:1, Brake Type None, Output Location Reversible, Shaft Orientation Inline, Output Shaft Type Keyed, Includes Capacitor Capacitor Included
