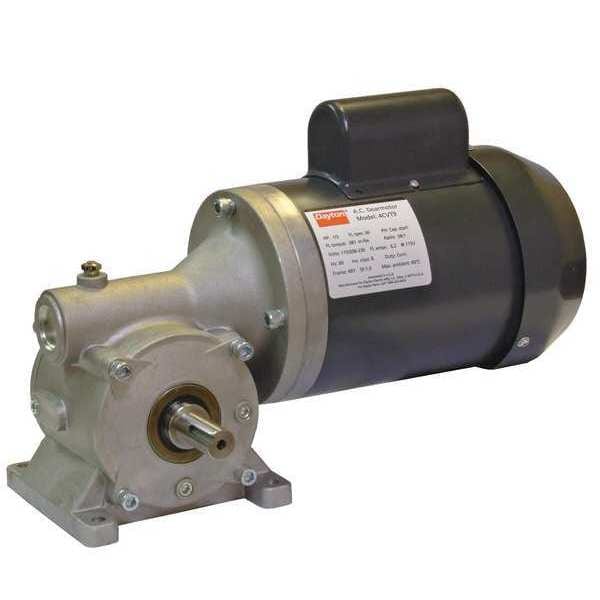

AC Gearmotor, 381 in-lb Max. Torque, 30 RPM Nameplate RPM, 115/208-230V AC Voltage, 1 Phase

  • Mfr # 4CVT9
  • Zoro # G2643916
product price:
$
1,508.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115V AC, 208V AC to 230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
381 in-lb
Gearmotor Shaft Type
Single Left
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4CVT9
Zoro #
G2643916
UPC #
190735322697
Country of Origin
China

Dimensions

Keyway Size Type
3/16 sq in x 1 in
Shaft Length (Dimension V)
1.88"
Dimension Z
4-3/4"
Dimension X
1.63"
Dimension BA
0.75"
Height (Dimension O)
9.53"
Dimension U
7 22/25"
Dimension N
0.31 in
Dimension E
3.22 in
Dimension F
4.77"
Dimension B
5.91 in
Dimension D1
9.08"
Dimension AA
6.03 in
Dimension D2
2.38"
Dimension D
4.75 in
Dimension AB
5.5 in
Dimension L
2.38"
Dimension C
5.63 in
Overall Length
15 in
Dimension A
8.97 in
Keyway Size
3/16" Square x 1"
Dimension S
1.09"
Shaft Dia. (Dimension U)
3/4 in
Dimension H
2.5 in
Overall Width
9.08 in
Housing Mount Hole Size
0.344 in
Output Shaft Diameter
3/4 in
Output Shaft Length
1 7/8 in
Keyway Width
1/5 in
Output Shaft Height
2.5 in
Overall Height
9.53 in
Mount Hole Center-to-Center Length
4.75 in
Mount Hole Center-to-Center Width
4.75 in
Keyway Depth
3/16 in
Wire Rope Length
15 in
Length
15 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115V AC, 208V AC to 230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
381 in-lb
Gearmotor Shaft Type
Single Left
Gearmotor Shaft Orientation
Right Angle
Nameplate RPM
30 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
5.6/2.8 A
Standards
UL Recognized
Input HP
1/3 hp
Shaft Orientation
Right Angle
Seals
Oil Seals on Axle Shaft
Enclosure
TEFC
Gears
Forged Bronze Output Gear, Hardened Steel Worm
Insulation Class
b
Voltage
115V, 208V to 230V
Gear Type
Worm
Gear Material
Forged Bronze, Hardened Steel
Mounting
All Position
Overhung Load
670 lb
Includes
Capacitor
Motor Type
Capacitor-Start
Phase
Single
Shaft
Single Output
Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Rotation
CW/CCW
Lubrication
Gear Oil
Hz
60 Hz
Gear Case Material
Die Cast Aluminum
Starting Torque
2,320 in-lb
RPM Range
16 to 30
Gear Ratio
58:1
Thermal Protection
None
Application
Conveyors, Mixers, Printing Press, Pumps
Housing
Aluminum/Cast Iron
Capacitor Required
Yes
Housing Material
Aluminum, Cast Iron
Number of Output Shafts
1
Motor Insulation Class
B
Seal Type
Oil Seals on Axle Shaft
Overhung Load Capacity
670 lb
Mounting Orientation
Any Angle
Nameplate Speed
30 RPM
Maximum Torque
381 in-lb
Full Load Current
5.6/2.8 A
Motor Enclosure
Totally Enclosed Fan-Cooled
Mount Type
Any Position
Bearing Type
Ball
Operating Voltage
115/208-230V AC
Frequency
60 Hz
Input Horsepower
0.33 hp
Maximum Ambient Temperature
104 Degrees F
Keyway Type
Woodruff
Output Location
Left Hand
Brake Type
None

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Capacitor-Start, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 30 RPM, Maximum Torque 381 in-lb, Overhung Load Capacity 670 lb, Rotation CW/CCW, Output Shaft Height 2.5 in, Mounting Orientation Any Angle, Operating Voltage 115/208-230V AC, Gear Ratio 58:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Motor Insulation Class B, Application Conveyors, Mixers, Printing Press, Pumps
