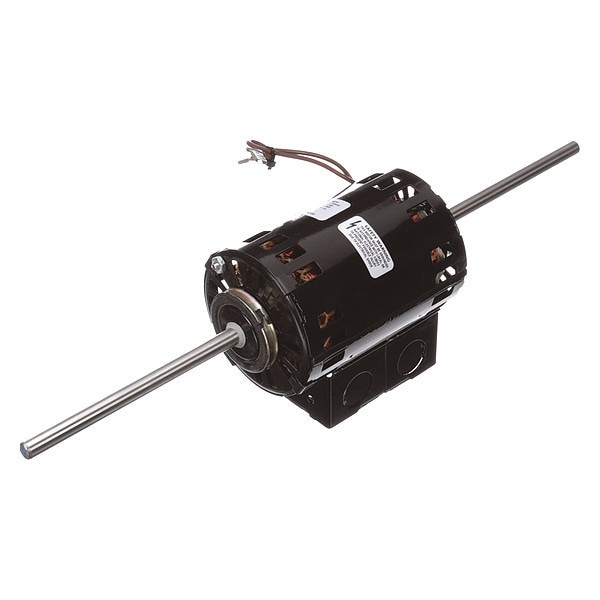

Motor, 1/15, 1/25, 1/35 HP, OEM Replacement Brand: McQuay Replacement For: 879-382563B-00

  • Mfr # D1141

  • Zoro # G4334456

product price:
$
279.00
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/15, 1/25, 1/35 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D1141
Zoro #
G4334456
UPC #
818508022079
Country of Origin
Mexico

Dimensions

Shaft Dia.
3/8"
Shaft Length
5.62"
Length Less Shaft
10 7/16 in
Body Dia.
3.3"
Manufacturers Warranty Length
1 yr
Overall Length
16.05"
Shaft Diameter
3/8 in
Wire Rope Length
16 1/16 in
Body Diameter
3.4 in
Frame Size
3.3
Length
16 1/16 in

Details

Frame
3.3
HP
1/15, 1/25, 1/35 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Resilient Rings
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1000 rpm
No. of Speeds
3
Number of Shafts
2
OEM Replacement Brand
McQuay
Phase
1
RPM Range
0-1000
Voltage
115V
Motor Bearings
Sleeve
Replacement For
879-382563B-00
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
1.7/1.3/1A
Capacitor Required
2MDV3
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Voltage Compatibility
115V AC, 120V AC
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Weight
6 lb
Motor Frame Material
Steel
Number of Speeds
3
Product Type
Condenser Fan Motor
Compatible Brand
McQuay
Bearing Type
Sleeve
Sub Application
Condenser Fan
Shaft Design
Flat
Compatible Manufacturer Part Number
879-382563B-00
Motor Enclosure Type
Open Air Over
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
1.7/1.3/1.0 A
Frame Material
Steel
Insulation Class
B

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15 hp, 1/25 hp, 1/35 hp HP, Nameplate RPM 1,000 RPM, No. of Speeds 3, Voltage 115V AC, Full Load Amps 1.7/1.3/1.0 A, 3.3 Frame, OEM Replacement Brand McQuay, Replacement For 879-382563B-00, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE
