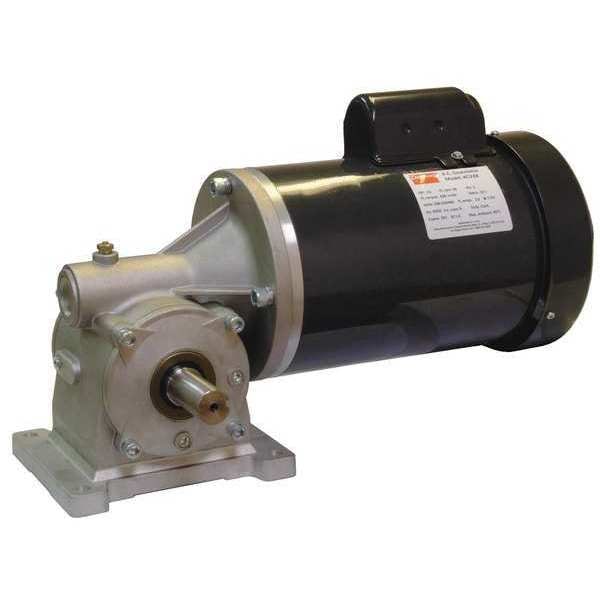

Dayton AC Gearmotor, 456 in-lb Max. Torque, 84 RPM Nameplate RPM, 115/208-230V AC Voltage, 1 Phase 4CVZ2 - main

AC Gearmotor, 456 in-lb Max. Torque, 84 RPM Nameplate RPM, 115/208-230V AC Voltage, 1 Phase

  • Mfr # 4CVZ2

  • Zoro # G1765337

product price:  $1,706.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/208-230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
456 in-lb
Gearmotor Shaft Type
Single Left
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4CVZ2
Zoro #
G1765337
UPC #
190735322987
Country of Origin
China

Dimensions

Keyway Size Type
1/4 sq in x 1-1/4 in
Dimension AA
6.72 in
Shaft Length (Dimension V)
2.25"
Dimension X
2"
Dimension D1
10.14"
Dimension L
2.5 in
Dimension A
10.78 in
Dimension AB
6 in
Dimension N
0.44 in
Dimension E
3.22 in
Keyway Size
1/4" Square x 1-1/4"
Dimension D2
3"
Dimension H
3.25 in
Dimension U
9 7/100"
Shaft Dia. (Dimension U)
1"
Dimension S
1.38"
Dimension C
7 in
Dimension D
6 in
Overall Length
17.5 in
Dimension Z
5"
Height (Dimension O)
10.66"
Dimension F
5.2 in
Dimension B
7.13 in
Dimension BA
1"
Housing Mount Hole Size
0.406 in
Overall Width
10.14 in
Keyway Depth
1 1/4 in
Keyway Width
1/4 in
Overall Height
10.66 in
Output Shaft Diameter
1 in
Output Shaft Length
2 1/4 in
Mount Hole Center-to-Center Length
6 in
Output Shaft Height
3.25 in
Mount Hole Center-to-Center Width
5 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/208-230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
456 in-lb
Gearmotor Shaft Type
Single Left
Gearmotor Shaft Orientation
Right Angle
Nameplate RPM
84 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
11.2/5.6
Standards
UL Recognized
Input HP
3/4 hp
Max. Ambient Temp.
40 Degrees C
Lubrication
Gear Oil
Insulation Class
F
Mounting
All Position
Thermal Protection
None
Overhung Load
882 lb
Starting Torque
1,260 in-lb
RPM Range
76 to 100
Gear Type
Worm
Gear Case Material
Die Cast Aluminum
Hz
60/50 Hz
Rotation
CW/CCW
Application
Conveyors, Mixers, Printing Press, Pumps
Gear Material
Forged Bronze, Hardened Steel
Bearings
Ball
Includes
Capacitor
Gear Ratio
21:1
Shaft
Single Output
Shaft Orientation
Right Angle
Voltage
115/208-230
Seals
Oil Seals on Axle Shaft
Gears
Forged Bronze Output Gear, Hardened Steel Worm
Enclosure
TEFC
Motor Type
Capacitor-Start
Phase
Single
Housing
Aluminum/Cast Iron
Capacitor Required
Yes
Housing Material
Aluminum, Cast Iron
Motor Insulation Class
F
Operating Voltage
115/208-230V AC
Input Horsepower
0.75 hp
Maximum Torque
456 in-lb
Mount Type
Any Position
Brake Type
None
Keyway Type
Woodruff
Frequency
50 Hz, 60 Hz
Motor Enclosure
Totally Enclosed Fan-Cooled
Mounting Orientation
Any Angle
Overhung Load Capacity
882 lb
Output Location
Left Hand
Full Load Current
11.2/5.6 A
Maximum Ambient Temperature
104 Degrees F
Nameplate Speed
84 RPM
Bearing Type
Ball
Seal Type
Oil Seals on Axle Shaft
Number of Output Shafts
1

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Capacitor-Start, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 84 RPM, Maximum Torque 456 in-lb, Overhung Load Capacity 882 lb, Rotation CW/CCW, Output Shaft Height 3.25 in, Mounting Orientation Any Angle, Operating Voltage 115/208-230V AC, Gear Ratio 21:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Motor Insulation Class F, Application Conveyors, Mixers, Printing Press, Pumps
