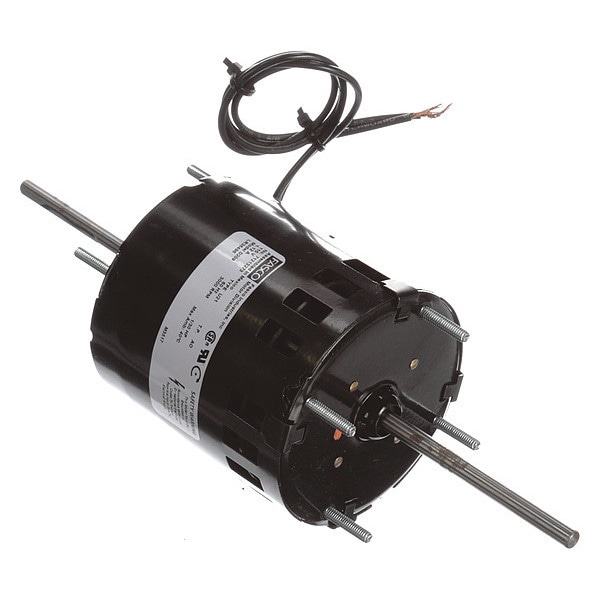

Fasco HVAC Motor, 1/30 HP, 3000 rpm, 115V, 3.3 D209 - main

HVAC Motor, 1/30 HP, 3000 rpm, 115V, 3.3

  • Mfr # D209

  • Zoro # G6183545

product price:  $95.79
/ea

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/30
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
D209
Zoro #
G6183545
UPC #
663001025078
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/4 in
Length Less Shaft
4 1/8 in
Shaft Length
2 1/2 in
Body Dia.
3 5/16 in
Bolt Circle Dia.
2 7/8 in
Lead Length
12 in
Stud Size
#8-32
Overall Length
10 3/16 in
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
2 7/8 in
Shaft Diameter
1/4 in
Body Diameter
3.3 in
Frame Size
3.3

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/30
RPM Range
1,801-3,000
Motor Design
Shaded Pole
Motor Shaft Design
Flat
Duty
Continuous
Phase
Single
Mounting Pattern
2-7/8 x 2-7/8
Max. Ambient Temp.
40 Degrees C
Application
Fan/Blower
Hz
60 Hz
Motor Bearings
Sleeve
Standards
CSA Certified, UL Recognized
Motor Shaft Rotation
CWSE
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Thermal Protection
Auto
No. of Speeds
1
Number of Shafts
2
Mounting Stud Location
4/Both Ends
Frame
3.3
Motor Service Factor
1
Item
Fan and Blower Motor
Ins. Class
B
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Motor Sub Application
Direct Drive Fan/Blower
Full Load Amps
1.1 A
Motor Application
HVAC/R
Motor Mounting Type
Ring/Stud
Capacitor Required
Capacitor Not Required
Weight
2.8 lb
Mounting Holes
(8) #8-32
Motor Mounting Position
All Angle
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Mounting
Stud
Frame Material
Steel
Sub Application
General Purpose
Shaft Design
Flat
Motor Enclosure Type
Open Air Over
Drive Type
Direct Drive
Insulation Class
B
Wattage
20 W
Full Load Current @ 60 Hz
1.1 A
Ambient Temperature - Maximum
40 Degrees C
Product Type
Fan and Blower Motor
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Sleeve
Frequency
60 Hz

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/30 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 1.1 A Full Load Amps, 3.3 Frame, Output Watts 20 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
