Shop DAYTON

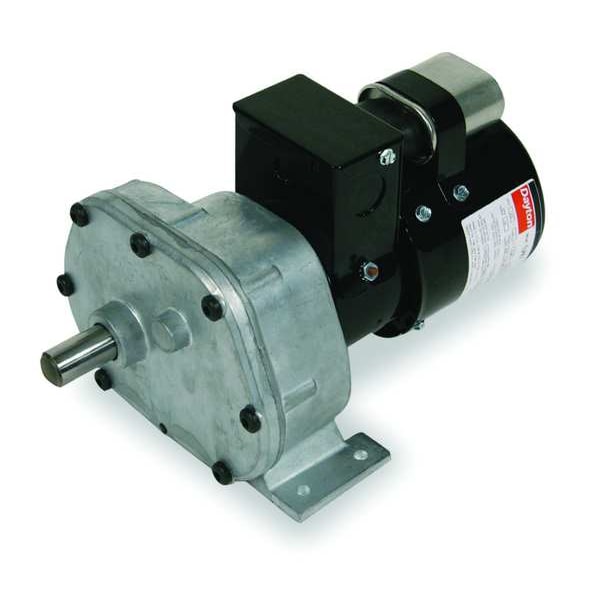

AC Gearmotor, 600 in-lb Max. Torque, 6 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

  • Mfr # 1LPL5

  • Zoro # G2533045

product price:
$
708.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
600 in-lb
Gearmotor Shaft Type
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1LPL5
Zoro #
G2533045
UPC #
190735144039
Country of Origin
Mexico

Dimensions

Length Less Shaft
9.88 in
Keyway Size Type
#605 Woodruff Key
Keyway Size
#605 Woodruff Key
Shaft Length (Dimension V)
1.5"
Shaft Dia. (Dimension U)
3/4 in
Overall Height
6 in
Overall Width
7.25 in
Mount Hole Center-to-Center Length
1.5 in
Keyway Depth
5/8 in
Keyway Width
3/16 in
Output Shaft Height
2.5 in
Output Shaft Length
1 1/2 in
Mount Hole Center-to-Center Width
6.38 in
Output Shaft Diameter
3/4 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
600 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
6 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
1.2/0.63 A
Standards
C-UL Recognized, CE Certified, UL Recognized
Input HP
1/12 hp
Gear Material
Hardened Steel, Phenolic
Reversible Shaft Output
No
Voltage
115/230
Phase
Single
RPM @ 50 Hz
5
Lubrication
Grease Filled
Capacitor Required
Yes
Bearings
Ball on Motor, Porous Bronze Sleeve on Case
Thermal Protection
None
RPM Range
0 to 15
Housing
Die Cast Zinc
Hz
60/50 Hz
Seals
O-ring Type on Output Shaft
Mounting
All Position
Overhung Load
250 lb
Insulation Class
b
Brake
Adaptable to 5X400
Gears
Hardened Steel/Phenolic
Rotation
CW/CCW
Finish
Unpainted
Enclosure
TEFC
Gear Ratio
267:1
Shaft Orientation
Parallel
Shaft
Single Output
Number of Brake Discs Required
1
Gear Case Material
Die Cast Zinc
Motor Type
Permanent Split Capacitor
Max. Ambient Temp.
40 Degrees C
Housing Material
Die Cast Zinc
Seal Type
O-Ring Type on Output Shaft
Brake Type
None
Mounting Orientation
Any Angle
Input Horsepower
0.083 hp
Motor Insulation Class
B
Mount Type
Any Position
Maximum Ambient Temperature
104 Degrees F
Maximum Torque
600 in-lb
Bearing Type
Ball on Motor, Porous Bronze Sleeve on Case
Overhung Load Capacity
250 lb
Inverter Rating
267:1
Number of Output Shafts
1
Motor Enclosure
Totally Enclosed Fan-Cooled
Inverter Rated
No
Full Load Current
1.2/0.63 A
Keyway Type
Woodruff
Nameplate Speed
6 RPM
Frequency
50 Hz, 60 Hz
Operating Voltage
115/230V AC
Housing Material Finish
Unpainted
Includes Capacitor
Capacitor Included

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 6 RPM, Maximum Torque 600 in-lb, Overhung Load Capacity 250 lb, Rotation CW/CCW, Output Shaft Height 2.5 in, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 267:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, Motor Insulation Class B
