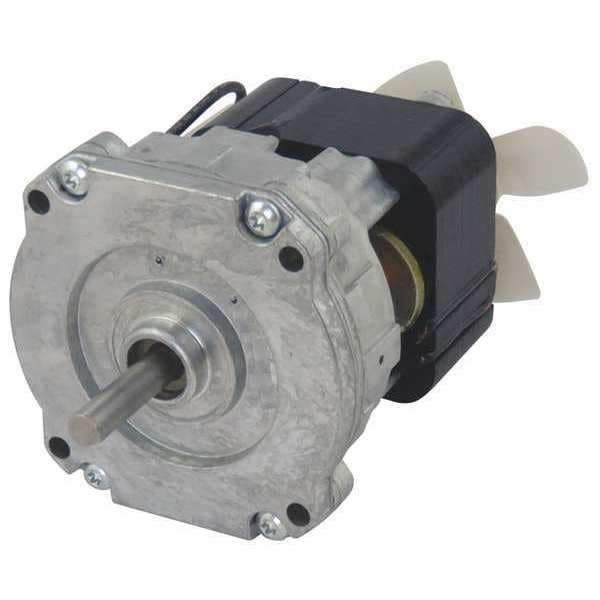

Dayton AC Gearmotor, 65 in-lb Max. Torque, 10 RPM Nameplate RPM, 115V AC Voltage, 1 Phase 52JD97 - main

AC Gearmotor, 65 in-lb Max. Torque, 10 RPM Nameplate RPM, 115V AC Voltage, 1 Phase

  • Mfr # 52JD97

  • Zoro # G6618355

product price:  $112.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
65 in-lb
Gearmotor Shaft Type
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
52JD97
Zoro #
G6618355
UPC #
00194484301965
Country of Origin
Mexico

Dimensions

Length Less Shaft
4.78 in
Shaft Length (Dimension V)
1"
Shaft Dia. (Dimension U)
3/8 in
Overall Length
6.02 in
Overall Width
3.25 in
Mount Hole Center-to-Center Length
2.38 in
Output Shaft Diameter
3/8 in
Output Shaft Height
4.63 in
Output Shaft Length
1 in
Overall Height
3.25 in
Mount Hole Center-to-Center Width
2.38 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
65 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
10 RPM
Gearmotor Enclosure
Open
Gearmotor Rotation
CW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
1.9
Standards
UL Recognized
Input HP
1/60 hp
Gear Case Material
Die Cast Zinc
Gear Material
Sintered Steel
Shaft Orientation
Parallel
Housing
Die Cast Zinc
Rotation
CW
Mounting
All Position
Service Factor
1
Number of Brake Discs Required
0
Brake
None
Voltage
115
No Load RPM
12 RPM
Overhung Load
30 lb
Gear Ratio
294:1
Capacitor Required
No
Starting Torque
100 in-lb
Insulation Class
A
Gear Type
Spur
Motor Shaft Design
Flat
Application
Agriculture, Amusement Devices, Controls, Conveyors, DVD Kiosks, Food and Restaurant Equipment, Ice Dispensing, Industrial Machinery, Ingredient Motors, Mail Sorting, Packaging, Pellet and Corn Stoves, Power Transmission, Printing Press, Pumps, Security Systems, Ticket Dispensing, Valve Actuators, Vending, Water Softeners, X-Ray Equipment
Lubrication
Grease Filled
Enclosure
Open
Finish
Unpainted
Gears
Spur
Motor Type
Shaded Pole
RPM Range
0 to 15
Max. Ambient Temp.
40 Degrees C
Reversible Shaft Output
No
Thermal Protection
Auto
Shaft
Single Output
Phase
Single
Bearings
Sintered Bronze Sleeve
Hz
60 Hz
Housing Material
Die Cast Zinc
Maximum Ambient Temperature
104 Degrees F
Mounting Orientation
Any Angle
Input Horsepower
0.167 hp
Maximum Torque
65 in-lb
Mount Type
Any Position
Number of Output Shafts
1
Brake Type
None
Bearing Type
Sintered Bronze Sleeve
Motor Insulation Class
A
Frequency
60 Hz
No Load Speed
12 RPM
Motor Enclosure
Open Air-Over
Operating Voltage
115V AC
Full Load Current
1.9 A
Housing Material Finish
Unpainted
Nameplate Speed
10 RPM
Overhung Load Capacity
30 lb

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Open Air-Over, Nameplate Speed 10 RPM, Maximum Torque 65 in-lb, Overhung Load Capacity 30 lb, Rotation CW, Output Shaft Height 4.63 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Gear Ratio 294:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class A
