Shop LEESON

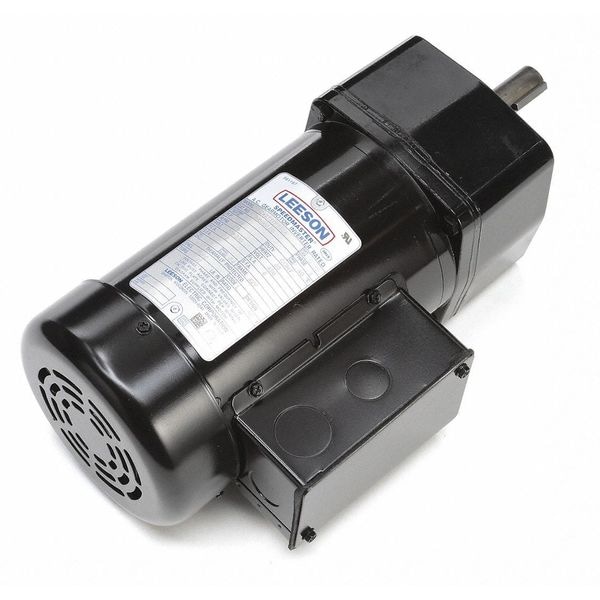

AC Gearmotor, 92 in-lb Max. Torque, 173 RPM Nameplate RPM, 208-230/460V AC Voltage, 3 Phase

  • Mfr # 096069.00

  • Zoro # G1883183

product price:
$
696.00
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
208-230/460V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
92 in-lb
Gearmotor Shaft Type
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
096069.00
Zoro #
G1883183
UPC #
691720347188
Country of Origin
United States

Dimensions

Length Less Shaft
11.45 in
Keyway Size Type
0.18 sq in x 1 in
Dimension C
13.07 in
Shaft Length (Dimension V)
1.63 in
Dimension S
0.187 in
Height (Dimension O)
5.16 in
Dimension AA
0.88 in
Dimension U
3/4 in
Dimension N
2 in
Shaft Dia. (Dimension U)
3/4 in
Dimension X
3.32 in
Keyway Size
0.18" Square x 1"
Dimension AB
4.25 in
Overall Length
13.07 in
Overall Width
4.29 in
Output Shaft Diameter
3/4 in
Output Shaft Length
1 5/8 in
Overall Height
4.97 in
Wire Rope Length
13.07 in
Length
13.07 in

Details

Item
AC Gearmotor
Gearmotor Voltage
208-230/460V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
92 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
173 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
1.2/0.6 A
Standards
CE Y, CSA Y, UL
Input HP
1/4 hp
Seals
Heavy Duty, Single Lip, Spring Loaded
RPM Range
151 to 200
Hz
60 Hz
Mounting
All Position Except Shaft Up
Gears
AGMA Class 9, Precision Machined and Hardened
Overhung Load
327 lb
Phase
Three
Finish
Black High Gloss Enamel
Enclosure
TEFC
Housing
Rolled Steel
Shaft Orientation
Parallel
Gear Case Material
Die Cast Aluminum
Rotation
CW/CCW
Motor Type
3-Phase
Gear Material
Precision Machined and Hardened
Thermal Protection
None
Voltage
208-230/460
Bearings
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
No Load RPM
179 RPM
Max. Ambient Temp.
40 Degrees C
Application
Inverter Duty
Insulation Class
F4
Gear Ratio
10:1
Gear Type
AGMA Class 9
Lubrication
Permanent Heavy Duty Gear Oil
Service Factor
1
Housing Material
Rolled Steel
Housing Material Finish
Black High Gloss Enamel
Maximum Ambient Temperature
104 Degrees F
Motor Enclosure
Totally Enclosed Fan-Cooled
Overhung Load Capacity
327 lb
Mounting Orientation
Horizontal, Vertical with Shaft Down
Maximum Torque
92 in-lb
Inverter Rated
Yes
Bearing Type
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
No Load Speed
179 RPM
Number of Output Shafts
1
Frequency
60 Hz
AGMA Gear Class
Class 9
Keyway Type
0.18 sq in x 1 in
Input Horsepower
0.25 hp
Maximum Output Speed
173 RPM
Full Load Current
1.2/0.60 A
Inverter Rating
10:1
Brake Type
None
Motor Duty Class
Continuous
Mount Type
Horizontal or Vertical Shaft Down
Nameplate Speed
173 RPM
Motor Frame Designation
42Y
Seal Type
Heavy Duty, Single Lip, Spring Loaded
Motor Insulation Class
F
Operating Voltage
208-230/460V AC

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 173 RPM, Maximum Torque 92 in-lb, Overhung Load Capacity 327 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 208-230/460V AC, Inverter Rated Yes, Gear Ratio 10:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class F, Motor Duty Class Continuous, AGMA Gear Class Class 9, Application Inverter Duty
