Specifications
Product Information
MFR #
4Z248
Zoro #
G3357146
UPC #
190735340165
Country of Origin
United States
Dimensions
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Overall Height
7 in
Overall Length
15 1/2 in
Overall Width
6 1/2 in
Length Less Shaft
11 3/4 in
Bolt Circle Dia.
5 15/16 in
Manufacturers Warranty Length
1 yr
Description

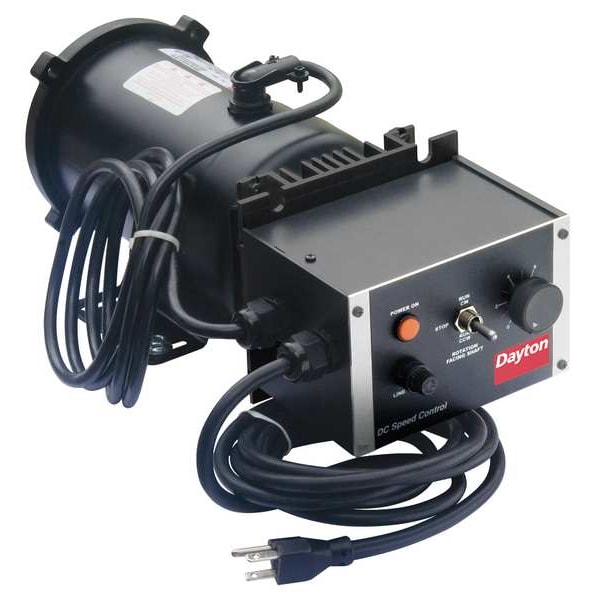

Adjustable Speed Motor, Motor Design Permanent Magnet DC, 1/4 HP, Nameplate RPM 1,750, Voltage 90V DC, 2.5 A Full Load Amps, 56C Frame, Full Load Torque 35 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Frame Material Steel, Motor Bearings Ball
Restrictions
Hazardous material
