This item is Discontinued.

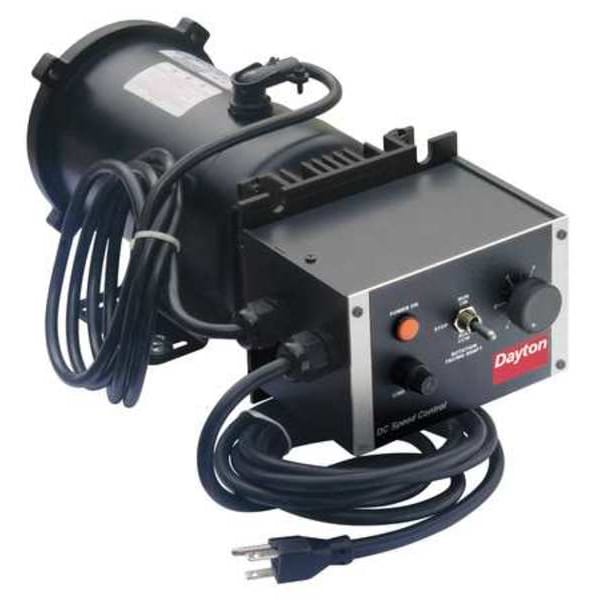

Dayton Adjustbl Speed Motor, Perm Magnet DC, 3/4 1F796

Adjustbl Speed Motor, Perm Magnet DC, 3/4 (Discontinued)

  • Mfr # 1F796
  • Zoro # G1079014
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F796
Zoro #
G1079014
UPC #
190735141557
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Overall Width
6 1/2 in
Overall Length
18 1/2 in
Overall Height
7 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
Adjustable Speed Motor
HP
3/4
Voltage
90V DC
Nameplate RPM
1,750
Frame
56C
Full Load Amps
7.6 A
RPM Range
1,701-1,800
Motor Thermal Protection
None
Includes
Fused Control Protection, Soft Start Acceleration, Transient and Surge Protection
Motor Type
Permanent Magnet DC
Application
For Packaging Equipment, Pumps, Fans, Blowers, Conveyors and Other Constant or Diminishing Torques
Ambient Temperature
40 Degrees C
Cord
3 Conductor
Thermal Protection
None
Mounting
C-face with Removable Rigid Base
HP @ 1725 RPM
0.75 hp
Motor Application
Washdown
Ins. Class
F
Output Voltage
90V DC
Motor Bearings
Ball
Enclosure
Totally Enclosed Fan-Cooled
Standards
UL Listed and C-UL Listed Control, UL Recognized and CSA Certified Motor
Features
Soft Start Acceleration, Transient and Surge Protection and Fused Control Protection
Rotation
CW/CCW
Motor Service Factor
1
Max. Torque
27 in-lb
Speed Range
50 to 1
Input Voltage
115V AC
Motor Design
Permanent Magnet DC
Voltage Compatibility
90V DC
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Rigid Base
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Removable Base
Yes
Duty Cycle
Continuous

Description

Adjustable Speed Motor, Motor Design Permanent Magnet DC, 3/4 HP, Nameplate RPM 1,750, Voltage 90V DC, 7.6 A Full Load Amps, 56C Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in, Overall Length 18 1/2 in

Restrictions

Hazardous material
