Dayton

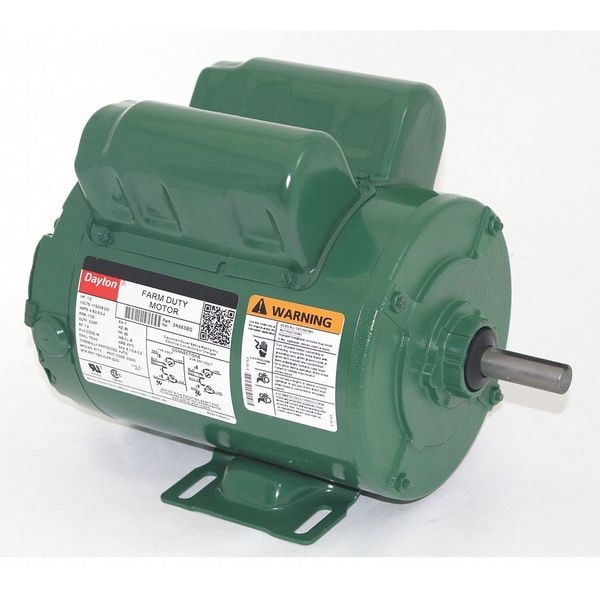

Agricultural Fan Motor, Capacitor-Start/Run, 1/2 HP, 115/208-230V AC, 1,725 Nameplate RPM, 56 Frame

product price: $351.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start/Run
  • Phase Single
  • HP 1/2
  • RPM Range 1,701-1,800
  • Voltage 115/208-230V AC
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Shaft Length 1 7/8 in
Length Less Shaft 9 13/16 in
Overall Length 11 11/16 in

Details

Item Agricultural Fan Motor
Motor Design Capacitor-Start/Run
Phase Single
HP 1/2
RPM Range 1,701-1,800
Voltage 115/208-230V AC
Frame 56
Motor Service Factor 1.4
Motor Thermal Protection Auto
Motor Enclosure Design Totally Enclosed Air-Over
Nameplate RPM 1,725
Motor Application Farm Duty
Motor Frame Material Rolled Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Shaft Design Keyed
Motor Sub Application Agricultural Fan
Motor Shaft Rotation CW/CCW
Standards CSA Certified (258501), UL Recognized (E37403)
Motor Bearings Ball
Ins. Class B
Capacitor Required Included
Includes Shaft Key, Gasketed Capacitor Cover, Conduit Box, Shaft Slinger
Item - Farm Duty Motors Agricultural Fan Motor
Max. Ambient Temperature 40 Degrees C
Finish Green
Hz 60 Hz
Full Load Amps 4.6/2.6-2.4 A
Duty Continuous Air Over
Nominal Efficiency 77.9 %
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Duty Cycle Continuous
No. of Speeds 1
Max. Ambient Temp. 40 Degrees C

Description

Agricultural Fan Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.6/2.6-2.4 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1.4, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel
