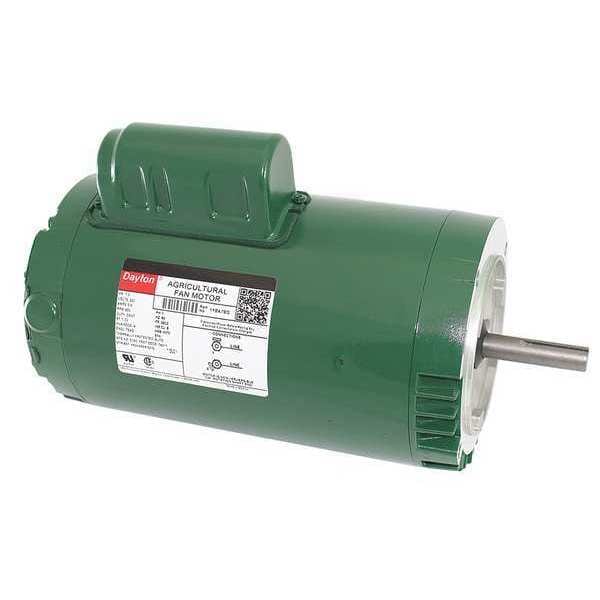

Dayton Agricultural Fan Motor, Permanent Split Capacitor, 1 HP, 230V AC, 850 Nameplate RPM, 56CZ Frame 1YBA7BG - main

Agricultural Fan Motor, Permanent Split Capacitor, 1 HP, 230V AC, 850 Nameplate RPM, 56CZ Frame

  • Mfr # 1YBA7BG

  • Zoro # G0918547

product price:  $721.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1
RPM Range
0-1,000
Voltage
230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1YBA7BG
Zoro #
G0918547
UPC #
190735150283
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/2 in
Length Less Shaft
11 3/8 in
Shaft Dia.
5/8 in
Overall Length
13 7/8 in

Details

Item
Agricultural Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1
RPM Range
0-1,000
Voltage
230V AC
Frame
56CZ
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
850
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Face
Motor Shaft Design
Keyed
Motor Sub Application
Agricultural Fan
Motor Shaft Rotation
CW
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Bearings
Ball
Duty
Continuous Air Over
Frame Material
Rolled steel
Capacitor Required
Included
Full Load Amps
5.8 A
Finish
Green
Hz
60 Hz
Max. Ambient Temperature
40 Degrees C
Ins. Class
B
Item - Farm Duty Motors
Agricultural Fan Motor
Nominal Efficiency
70.2 %
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Includes
Shaft Slinger, Gasketed Capacitor Cover
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
No. of Speeds
1
Application
Farm Duty
Replacement For
6GD02

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 5.8 A, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Green
