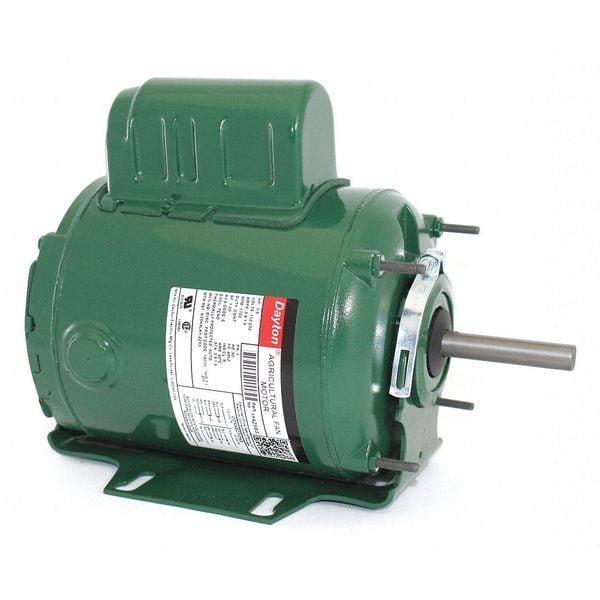

Agricultural Fan Motor, Permanent Split Capacitor, 1/3 HP, 115/230V AC, 1,700 Nameplate RPM
- Mfr # 1YAZ5
- Zoro # G0664431
product price:Â
$
261.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,601-1,700
Voltage
115/230V AC
Frame
48YZ
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1YAZ5
- Zoro #
- G0664431
- UPC #
- 190735150177
- Country of Origin
- Mexico
Dimensions
- Shaft Length
- 2 1/2 in
- Shaft Dia.
- 1/2 in
- Overall Length
- 10 7/16 in
- Length Less Shaft
- 7 15/16 in
- Wire Rope Length
- 10 7/16 in
- Length
- 10 7/16 in
Description
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,700 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.8/1.9 A, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
