  6. Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 850 Nameplate RPM

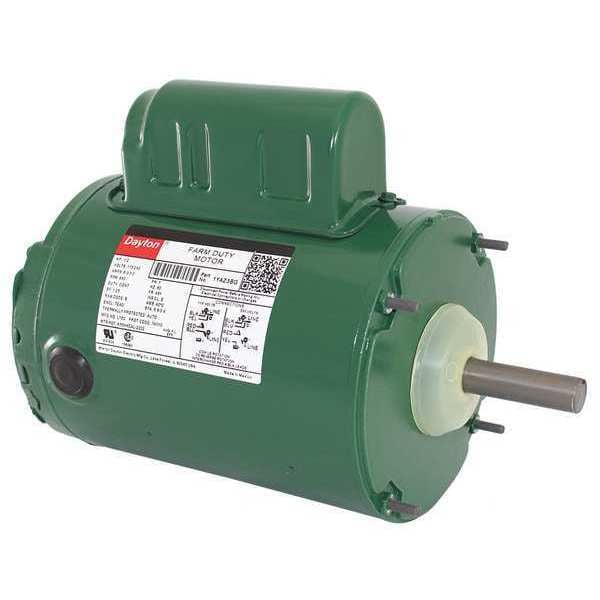

Dayton Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 850 Nameplate RPM 1YAZ3 - main

Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 850 Nameplate RPM

  • Mfr # 1YAZ3

  • Zoro # G3318314

product price:  $323.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
0-1,000
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1YAZ3
Zoro #
G3318314
UPC #
190735150153
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
8 1/4 in
Shaft Length
3 3/8 in
Overall Length
11 in

Details

Item
Agricultural Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
0-1,000
Voltage
115/230V AC
Frame
48YZ
Motor Service Factor
1.25
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
850
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Motor Sub Application
Agricultural Fan
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Bearings
Ball
Hz
60 Hz
Capacitor Required
Included
Max. Ambient Temperature
40 Degrees C
Includes
Shaft Slinger, Gasketed Capacitor Cover & Wiring Compartment Cover, Extended Thru Bolts
Duty
Continuous
Item - Farm Duty Motors
Agricultural Fan Motor
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Finish
Enamel
Ins. Class
B
Full Load Amps
6.0/3.0 A
Nominal Efficiency
62.8 %
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Duty Cycle
Continuous
Application
Farm Duty
Replacement For
4M250, 6GC98

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.0/3.0 A, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Motor Frame Material Steel
