Shop DAYTON

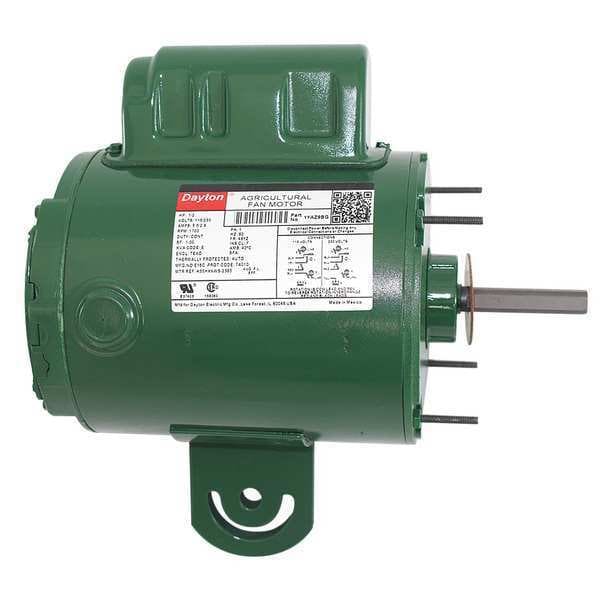

Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1,700 Nameplate RPM

  • Mfr # 1YAZ9BG

  • Zoro # G0715023

product price:  $330.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2 hp
RPM Range
1,601-1,700
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1YAZ9BG
Zoro #
G0715023
UPC #
190735150214
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 1/2 in
Overall Length
10 9/16 in
Length Less Shaft
8 1/16 in
Wire Rope Length
10 9/16 in

Details

Item
Farm Duty Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2 hp
RPM Range
1,601-1,700
Voltage
115/230V AC
Frame
48YZ
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,700 RPM
Motor Application
Agriculture
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Yoke
Motor Shaft Design
Double Flat
Motor Sub Application
Poultry/Livestock Fan
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Hz
60 Hz
Motor Bearings
Ball
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Nominal Efficiency
69.6 %
Full Load Amps
5.5/2.8 A
Finish
Green
Max. Ambient Temperature
40 Degrees C
Capacitor Required
Capacitor Included
Includes
5/8 in Shaft Adapter, Extended Thru Bolts, Gasketed Capacitor Cover, Shaft Key, Shaft Slinger
Ins. Class
F
Item - Farm Duty Motors
Agricultural Fan Motor
Frame Material
Rolled steel
Duty
Continuous Air Over
Duty Cycle
Continuous
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Replacement For
4M256
Application
Farm Duty
Drive Type
Direct Drive
Adjustable Speed
Adjustable Speed Compatible

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,700 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.5/2.8 A, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Yoke, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Green
