Shop DAYTON

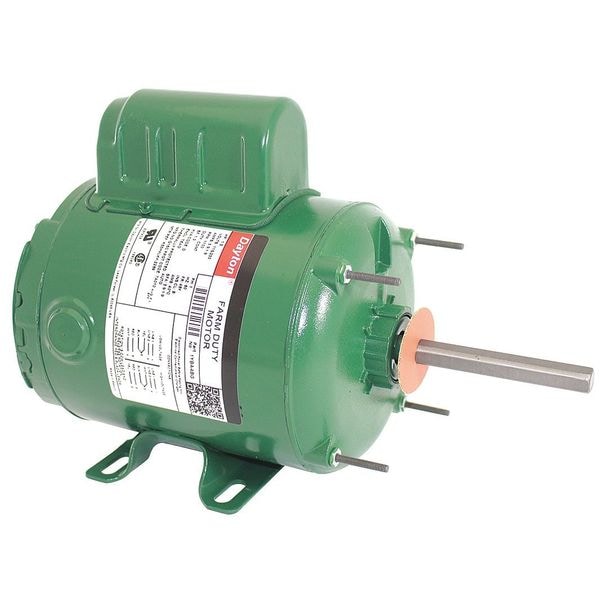

Agricultural Fan Motor, Permanent Split Capacitor, 1/3 HP, 115/230V AC, 1,100 Nameplate RPM

  • Mfr # 1YBA4BG

  • Zoro # G2516805

product price:
$
660.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 hp
RPM Range
1,001-1,100
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1YBA4BG
Zoro #
G2516805
UPC #
190735150252
Country of Origin
Mexico

Dimensions

Length Less Shaft
7 1/2 in
Shaft Dia.
1/2 in
Overall Length
11 1/4 in
Shaft Length
3 3/4 in
Wire Rope Length
11 1/4 in
Length
11 1/4 in

Details

Item
Farm Duty Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 hp
RPM Range
1,001-1,100
Voltage
115/230V AC
Frame
48Y
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,100 RPM
Motor Application
Agriculture
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Shaft Design
Double Flat
Motor Sub Application
Poultry/Livestock Fan
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Includes
5/8 in Shaft Adapter, Extended Thru Bolts, Gasketed Capacitor Cover, Shaft Key, Shaft Slinger
Ins. Class
B
Finish
Green
Frame Material
Rolled steel
Duty
Continuous Air Over
Hz
60 Hz
Motor Bearings
Ball
Full Load Amps
3.9/1.9 A
Item - Farm Duty Motors
Agricultural Fan Motor
Capacitor Required
Capacitor Included
Nominal Efficiency
60.4 %
Max. Ambient Temperature
40 Degrees C
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Duty Cycle
Continuous
Application
Farm Duty
Replacement For
6GC96
Drive Type
Direct Drive

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.9/1.9 A, 48Y Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel
