Dayton

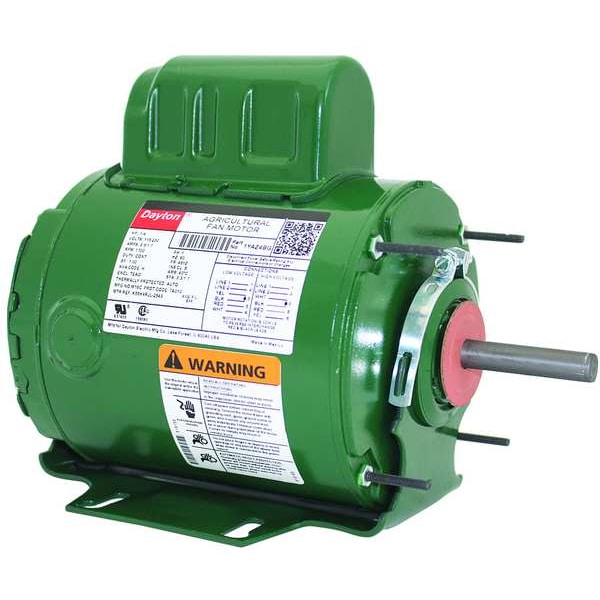

Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1,700 Nameplate RPM

Dayton Agricultural Fan Motor,  Permanent Split Capacitor,  1/4 HP,  115/230V AC,  1,700 Nameplate RPM 1YAZ4BG
Hover or click to zoom Tap to zoom
  • Motor Sub Application: Poultry/Livestock Direct Drive Fan
  • Item: Agricultural Fan Motor
  • Motor Design: Permanent Split Capacitor
  • Phase: Single
  • RPM Range: 1,601-1,700
  • Voltage: 115/230V AC
  • Frame: 48YZ
  • Motor Service Factor: 1
See full product details
$229.30

Subtotal: $229.30

Dayton #1YAZ4BG Specifications

  • Motor Sub Application: Poultry/Livestock Direct Drive Fan
  • Item: Agricultural Fan Motor
  • Motor Design: Permanent Split Capacitor
  • Phase: Single
  • HP: 1/4
  • RPM Range: 1,601-1,700
  • Voltage: 115/230V AC
  • Frame: 48YZ
  • Motor Service Factor: 1
  • Motor Thermal Protection: Auto
  • Motor Enclosure Design: Totally Enclosed Air-Over
  • Nameplate RPM: 1,700
  • Motor Application: Farm Duty
  • Motor Frame Material: Rolled Steel
  • Motor Mounting Position: Horizontal
  • Motor Mounting Type: Cradle Base
  • Motor Shaft Design: Double-Flat
  • Motor Shaft Rotation: CW/CCW
  • Standards: CSA Certified (258501), UL Recognized (E37403)
  • Duty: Continuous Air Over
  • Nominal Efficiency: 62.5 %
  • Overall Length: 9 15/16 in
  • Ins. Class: B
  • Motor Bearings: Ball
  • Includes: 5/8 in Shaft Adapter, Extended Thru Bolts, Gasketed Capacitor Cover, Shaft Key, Shaft Slinger
  • Shaft Dia.: 1/2 in
  • Full Load Amps: 3.3/1.70
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Item - Farm Duty Motors: Agricultural Fan Motor
  • Shaft Length: 2 7/16 in
  • Capacitor Required: Included
  • Max. Ambient Temperature: 40 Degrees C
  • Hz: 60
  • Length Less Shaft: 7 1/2 in
  • Finish: Green
  • Frame Material: Rolled steel
  • No. of Speeds: 1
  • Duty Cycle: Continuous
  • Max. Ambient Temp.: 40 Degrees C
  • Country of Origin (subject to change): Mexico

Description

Agricultural Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,700, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.3/1.70, 48YZ Frame, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel
