  6. Agricultural Fan Motor, Split-Phase, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame

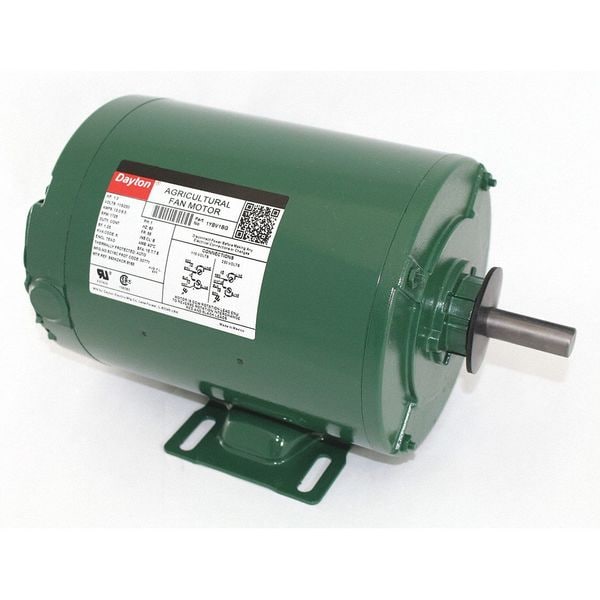

Dayton Agricultural Fan Motor, Split-Phase, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame 1YBV1 - main
Shop DAYTON

Agricultural Fan Motor, Split-Phase, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame

  • Mfr # 1YBV1

  • Zoro # G3304472

product price:  $415.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1YBV1
Zoro #
G3304472
UPC #
190735150382
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 15/16 in
Overall Length
11 3/8 in
Length Less Shaft
9 7/16 in

Details

Item
Agricultural Fan Motor
Motor Design
Split-Phase
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56
Motor Service Factor
1.25
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Sub Application
Agricultural Fan
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Ins. Class
B
Duty
Continuous Air Over
Frame Material
Rolled steel
Includes
Shaft Key, Shaft Slinger, Gasketed Wiring Compartment Cover
Nominal Efficiency
67.4 %
Motor Bearings
Ball
Full Load Amps
13.0/6.5 A
Finish
Green
Max. Ambient Temperature
40 Degrees C
Hz
60 Hz
Item - Farm Duty Motors
Agricultural Fan Motor
Duty Cycle
Continuous
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Replacement For
4K089
Application
Farm Duty

Description

Farm Duty Motor, Single Phase, Motor Design Split-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.0/6.5 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Green
