Dayton

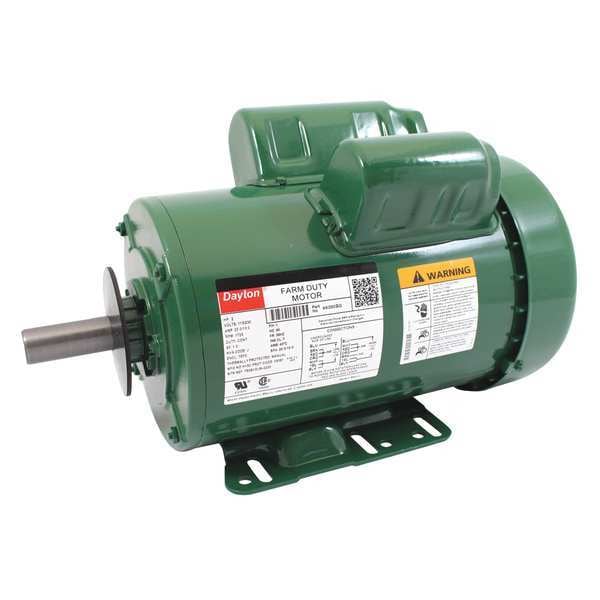

High Torque Farm Duty Motor, Capacitor-Start/Run, 2 HP, 115/230V AC, 1,725 Nameplate RPM, 56HZ Frame

Dayton High Torque Farm Duty Motor, Capacitor-Start/Run, 2 HP, 115/230V AC, 1,725 Nameplate RPM, 56HZ Frame 4K090
Tap to zoom
Hover or click to zoom
$394.43
  • Motor Sub Application: High Torque
  • Item: High Torque Farm Duty Motor
  • Motor Design: Capacitor-Start/Run
See full product details
This item ships free.
Total: $394.43

Dayton #4K090 Specifications

  • Motor Sub Application: High Torque
  • Item: High Torque Farm Duty Motor
  • Motor Design: Capacitor-Start/Run
  • Phase: Single
  • HP: 2
  • RPM Range: 1,701-1,800
  • Voltage: 115/230V AC
  • Frame: 56HZ
  • Motor Service Factor: 1
  • Motor Thermal Protection: Manual
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
  • Nameplate RPM: 1,725
  • Motor Application: Farm Duty
  • Motor Frame Material: Rolled Steel
  • Motor Mounting Position: Horizontal
  • Motor Mounting Type: Rigid Base
  • Motor Shaft Design: Keyed
  • Motor Shaft Rotation: CW/CCW
  • Standards: CSA Certified (258501), UL Recognized (E37403)
  • Shaft Length: 2 1/4 in
  • Includes: Shaft Key, Gasketed Conduit Box and Shaft Slinger
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Finish: Green
  • Shaft Dia.: 7/8 in
  • Nominal Efficiency: 78.7 %
  • Length Less Shaft: 12 in
  • Frame Material: Rolled steel
  • Overall Length: 14 1/4 in
  • Capacitor Required: Included
  • Ins. Class: F
  • Duty: Continuous
  • Full Load Amps: 20.0/10.0
  • Motor Bearings: Ball
  • Hz: 60
  • Max. Ambient Temperature: 40 Degrees C
  • Item - Farm Duty Motors: High Torque Farm Duty Motor
  • No. of Speeds: 1
  • Max. Ambient Temp.: 40 Degrees C
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Mexico

Description

High Torque Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 20.0/10.0, 56HZ Frame, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel
