Shop CENTURY

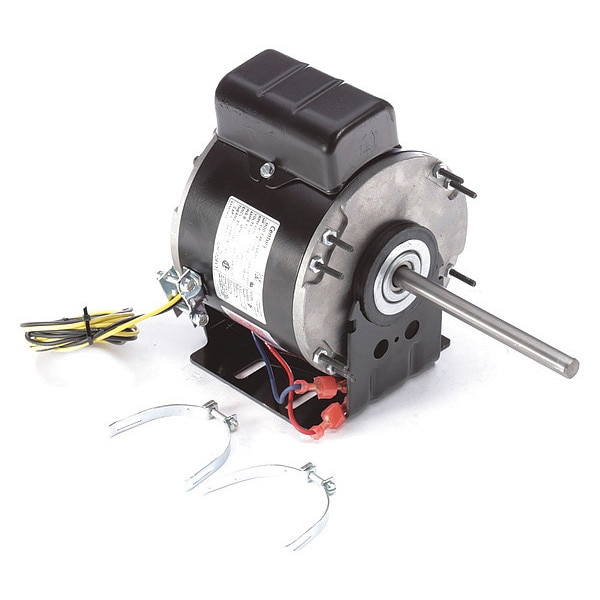

Unit Heater Motor, 1/4 hp

  • Mfr # UH1026V1

  • Zoro # G1265704

product price:
$
219.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/4
Nameplate RPM
1,075
Voltage
115V AC
Frame
48Y
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UH1026V1
Zoro #
G1265704
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Ring Dia.
2 1/2 in
Shaft Length
5 1/2 in
Overall Length
10 3/8 in
Length Less Shaft
5 1/4 in
Stud Size
#8-32
Resilient Ring Dia.
2 1/2 in
Lead Length
58 in
Bolt Circle Dia.
5 1/8 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Frame Size
48Y
Bolt Circle Diameter
5 1/8 in
Mounting Stud Thread Size
#8-32
Wire Rope Length
10 3/8 in

Details

Item
Unit Heater Motor
Motor Design
Permanent Split Capacitor
HP
1/4
Nameplate RPM
1,075
Voltage
115V AC
Frame
48Y
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Ring/Stud
RPM Range
1,001-1,100
Motor Application
HVAC/R
No. of Speeds
1
Hz
60 Hz
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Application
Unit Heater
Mounting Stud Pattern
3 5/8 in x 3 5/8 in SE, 4 1/2 in x 2 9/16 in SE
Motor Sub Application
Unit Heater
Phase
Single
Ring to Ring Center
4 15/16 in
Ins. Class
B
Standards
CSA Certified, UL Recognized
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Motor Efficiency Group
Energy Efficient
Motor Service Factor
1
Includes
Extended Studs, Permanent Split Capacitor, Resilient Rings
Motor Thermal Protection
Auto
Full Load Amps
4.1 A
Max. Ambient Temp.
40 Degrees C
Conduit Box Location
Exterior
Weight
13 lb
Motor Mounting Position
Horizontal
Stud Quantity
4
Capacitor Required
Capacitor Included
Number of Shafts
1
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Motor Shaft Design
Flat
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Mounting Holes
(4) #8-32
Conduit Box Position
F3
Number of Speeds
1
Mounting
Cradle Base
Ambient Temperature
40 Degrees C
Output Watts
190 W
Sub Application
Unit Heater
Wattage
190 W
Full Load Current @ 60 Hz
4.1 A
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat
Product Type
Unit Heater Motor
Mounting Position
Horizontal
Motor Enclosure Type
Totally Enclosed Air-Over
Drive Type
Direct Drive
Frequency
60 Hz
Frame Material
Steel

Description

Unit Heater Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115V AC, 4.1 A Full Load Amps, 48Y Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed, Motor Frame Material Steel, Motor Mounting Position Horizontal
