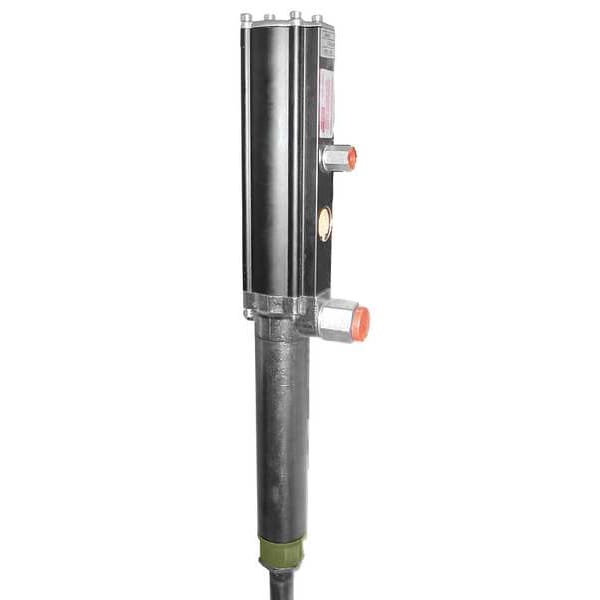

Dayton Air Drum Pump, 10.6 gpm, 142 psi, 1:1 5UWG1 - main
Shop DAYTON

Air Drum Pump, 10.6 gpm, 142 psi, 1:1

  • Mfr # 5UWG1

  • Zoro # G3641242

product price:  $643.99
/ea
Free Shipping & Returns

Key Features

For Container Size
55 gal
Max. Flow Rate
10.6 gpm
Max. Viscosity
1,500 cps
Wetted Materials
Aluminum, Nickel Plated Steel, Buna-N, Stainless Steel, Zinc
Includes Suction Tube
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5UWG1
Zoro #
G3641242
UPC #
190735352564
Country of Origin
India

Dimensions

For Container Size
55 gal
Inlet Size
1/4"
Suction Tube Length
22 1/2 in
Manufacturers Warranty Length
1 yr.
Discharge Size FPT (In.)
3/4
Air Inlet Size
1/4 in FNPT
Air Outlet Size
1/2 in
Overall Height
18-1/2 in
Air Inlet Connection Size
1/4 in

Details

Item
Air Drum Pump
Max. Flow Rate
10.6 gpm
Max. Viscosity
1,500 cps
Wetted Materials
Aluminum, Nickel Plated Steel, Buna-N, Stainless Steel, Zinc
Includes Suction Tube
Yes
For Use With
Antifreeze, Mild Solvents, Varnishes and High Volume Short Runs, Water Based Fluids
Discharge Tube Outlet ID
3/4 in
Discharge Tube Outlet OD
3/4 in NPT
Motor Type
Air Operated
Type
Air Operated, Fluid Transfer Drum Pump
Discharge Tubing Material
Steel
Adapter Material
Aluminum
Max. Air Inlet (PSI)
142
Self-Priming
Yes
Seal Material
Nitrile Rubber/Polyurethane
Includes
2 in Bung Adapter
Max. Flow GPM
10.6
Delivers
1500 cps
Adapter Type
Threaded
Metered
No
Housing Material - Pumps
Aluminum
Discharge Connection Type
FNPT
Power Source
Air
Includes Spout
No
For Container Type
Drum
Max. Fluid Temp.
140 Degrees F
Max. Air Pressure
142 psi
Includes Discharge Hose
No
Includes Nozzle
No
Includes Bung Adapter
Yes
Min. Air Pressure
30 psi
Max. Oil Flow
10.6 gpm
Max. Head - Pumps
10 ft
Pump Ratio
1:1
Max. Head Pressure
142 psi
Suction Tube Material
Stainless Steel
Meter Type Included
No Meter Included
Pressure Ratio
1:1
Maximum Oil Flow
10.6 gpm
Maximum Fluid Temperature
140 Degrees F
Wetted Material
Aluminum/Buna-N/Nickel Plated Steel/Stainless Steel/Zinc
Maximum Flow Rate
10.6 gpm
Minimum Air Pressure
30 psi
Maximum Head
10 ft
Maximum Air Pressure
142 psi
Air Inlet Connection Type
FNPT
Maximum Outlet Pressure
142 psi
Housing Material
Aluminum
Maximum Viscosity
1,500 cps

Description

Air Operated Drum Pump, Max. Air Pressure 142 psi, Self-Priming Yes, Overall Length -, Discharge Connection Type FNPT, Air Outlet Size 1/2 in, Includes Discharge Hose No, Max. Viscosity 1,500 cps, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle No, Includes Spout No, Adapter Material Aluminum

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
