  9. Axial Fan, Square, 115V AC, 1 Phase, Cast Aluminum, 4 11/16 in W.

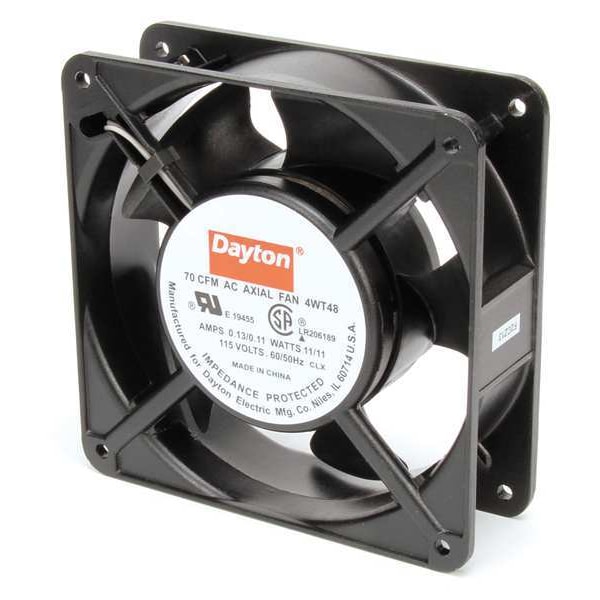

Dayton Axial Fan, Square, 115V AC, 1 Phase, Cast Aluminum, 4 11/16 in W. 4WT48 - main

Axial Fan, Square, 115V AC, 1 Phase, Cast Aluminum, 4 11/16 in W.

  • Mfr # 4WT48

  • Zoro # G3248287

product price: $20.79
/ea

Key Features

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
70 cfm
Depth
1 1/2 in
Height
4 11/16 in
Housing Material
Cast Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4WT48
Zoro #
G3248287
UPC #
190735336953
Country of Origin
China

Dimensions

Depth
1 1/2 in
Height
4 11/16 in
Width
4 11/16 in
Fan Depth
1-1/2"
Fan Width
4-11/16"
Fan Width
4-11/16"
Fan Height
4-11/16"

Details

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
70 cfm
Housing Material
Cast Aluminum
Phase
1
Shape
Square
Watts
11/11 W
Voltage
115V AC
Motor Insulation
Class A
Item
Axial Fan
Amps
0.13/0.11 A
Fan Voltage
115VAC
Requires
Cord Set (Not Included)
Electrical Connection - Fans
Terminals
Fan RPM
2000/2200
Fan Item
Axial Fan
Electrical Connections
Terminals
Bearings
Sleeve
Fan Shape
Square
Mounting Eye O.C.
4 1/8 in
Motor Type
Shaded pole
Housing Finish
Black Painted
Fan dBA
36/38
Fan Watts
11.0/11.0
Hz
60/50 Hz
Max. Ambient Temp.
158 Degrees F
dBA
36
Mounting Eye O.C. - Fans
4-1/8"
Thermal Protection
Impedance
Standards
RU E19455 AND CSA LR206189
Mounting Position
Horizontal
IP Rating
IP20
RPM
2200/2000 RPM
Motor Design
Shaded Pole
Color
Black
Bearing Type
Sleeve
Environmental Applications
Equipment Cooling

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 4 1/8 in, Height 4 11/16 in, Depth 1 1/2 in, Width 4 11/16 in, CFM @ 0.000-In. SP 70 cfm, Watts 11/11 W, Voltage 115V AC, 60/50 Hz Hz, 0.13/0.11 A Amps, Electrical Connection - Fans Terminals, Sound Level 36/38, IP Rating IP20, Mounting Position Horizontal, Bearing Type Sleeve, 2200/2000 RPM RPM, Motor Design Shaded Pole, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
