Shop DAYTON

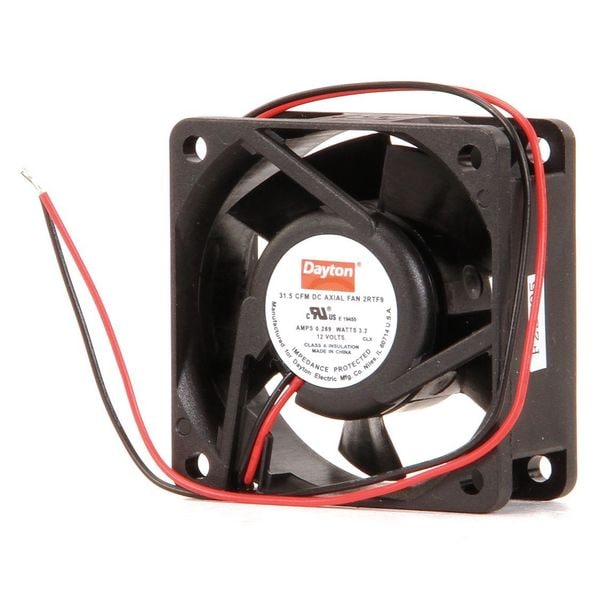

Axial Fan, Square, 12V DC, - Phase, PBT Plastic, 2 3/8 in W.

  • Mfr # 2RTF9

  • Zoro # G0496614

product price:  $17.49
/ea

Key Features

Blade Material
Polybutylene
CFM @ 0.000-In. SP
40 cfm
Depth
1 in
Height
2 3/8 in
Housing Material
Polybutylene Terephthalate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2RTF9
Zoro #
G0496614
UPC #
190735230220
Country of Origin
China

Dimensions

Depth
1 in
Height
2 3/8 in
Width
2 3/8 in
Fan Height
2-3/8"
Fan Width
2-3/8"
Fan Width
2-3/8"
Fan Depth
1"
Lead Length
11 13/16 in

Details

Blade Material
Polybutylene
CFM @ 0.000-In. SP
40 cfm
Housing Material
Polybutylene Terephthalate
Shape
Square
Watts
3.2 W
Voltage
12V DC
Thermal Protection
Yes
Electrical Connections
12" Leads
Electrical Connection - Fans
Lead Wires
Fan Shape
Square
Housing Finish
Black Painted
Mounting Eye O.C. - Fans
1-15/16"
Amps
0.269 A
Fan dBA
41
Mounting Eye O.C.
1 15/16 in
Fan Watts
3.2
Mounting Position
Horizontal/Vertical
Fan RPM
6100
Hz
60/50 Hz
Item
Axial Fan
Fan Voltage
12VDC
Bearings
Zero Friction Air
Motor Insulation
A
dBA
41
Max. Ambient Temp.
158 Degrees F
Fan Item
Axial Fan
Standards
CE Certified and RoHS Compliant, UL Component Recognized for US and Canada
IP Rating
IP20
Environmental Applications
Equipment Cooling
RPM
6,100 RPM
Bearing Type
Zero Friction Air
Motor Design
DC
Color
Black
Sound Level
41 dBA
Removable Base
Permanently Lubricated
Environment Rating
Dry
Includes Guard
No
Sound Level - Minimum
41 dBA
Includes Filter
No

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 1 15/16 in, Height 2 3/8 in, Depth 1 in, Width 2 3/8 in, CFM @ 0.000-In. SP 40.0 cfm, Watts 3.2 W, Voltage 12V DC, - Hz, 0.269 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 41, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Zero Friction Air, 6100 RPM RPM, Motor Design DC, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F, Blade Material Polybutylene
