Shop DAYTON

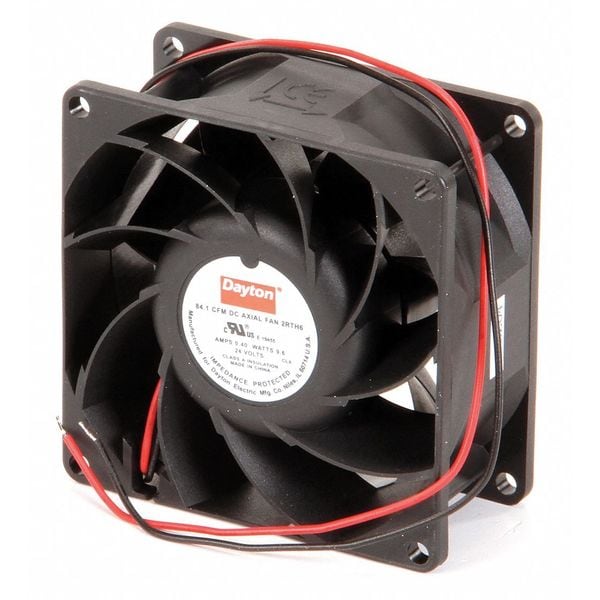

Axial Fan, Square, 24V DC, - Phase, PBT Plastic, 3 1/8 in W.

  • Mfr # 2RTH6
  • Zoro # G2968813
product price:
$
37.29
/ea

Key Features

Blade Material
Polybutylene
CFM @ 0.000-In. SP
74 cfm
Depth
1 1/2 in
Height
3 1/8 in
Housing Material
Polybutylene Terephthalate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2RTH6
Zoro #
G2968813
UPC #
190735230282
Country of Origin
China
Blade Material
Polybutylene
CFM @ 0.000-In. SP
74 cfm
Housing Material
Polybutylene Terephthalate
Shape
Square
Watts
9.6 W
Voltage
24V DC
Fan Item
Axial Fan
Motor Insulation
A
Housing Finish
Black Painted
Fan RPM
5700
Max. Ambient Temp.
158 Degrees F
Fan Shape
Square
Bearings
Ball
dBA
55.2
Electrical Connections
12" Leads
Item
Axial Fan
Amps
0.4 A
Thermal Protection
Yes
Fan dBA
55.2
Mounting Eye O.C.
2 13/16 in
Electrical Connection - Fans
Lead Wires
Fan Voltage
24V DC
Mounting Eye O.C. - Fans
2-13/16"
Mounting Position
Horizontal/Vertical
Hz
60/50 Hz
Fan Watts
9.6
Standards
RoHS Compliant, UL Recognized
IP Rating
IP20
Environmental Applications
Equipment Cooling
RPM
5,700 RPM
Motor Design
Brushless DC
Bearing Type
Ball
Color
Black
Sound Level
55.2 dBA
Includes Guard
No
Removable Base
Permanently Lubricated
Environment Rating
Dry
Sound Level - Minimum
55.2 dBA
Includes Filter
No
Wire Color
Black

Dimensions

Depth
1 1/2 in
Height
3 1/8 in
Width
3 1/8 in
Fan Height
3-1/8"
Fan Width
3-1/8"
Fan Width
3-1/8"
Fan Depth
1-1/2"
Lead Length
11 13/16 in

Description

Axial Fan, Fan Shape Square, Mounting Eye O.C. 2 13/16 in, Height 3 1/8 in, Diameter Not Applicable, Depth 1 1/2 in, Width 3 1/8 in, CFM @ 0.000-In. SP 74 cfm, Watts 9.6 W, Voltage 24V DC, 60/50 Hz Hz, 0.4 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 55.2 dBA, IP Rating IP20, Fan Mounting Location Enclosure, Mounting Position Horizontal/Vertical, Bearing Type Ball, 5,700 RPM RPM, Motor Design Brushless DC, Motor Insulation A, Thermal Protection Yes

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
