Shop DAYTON

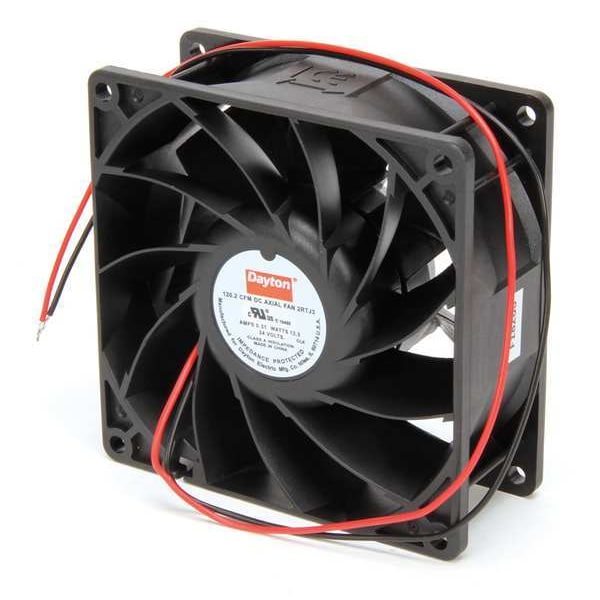

Axial Fan, Square, 24V DC, - Phase, PBT Plastic, 3 5/8 in W.

  • Mfr # 2RTJ3

  • Zoro # G1263954

product price:  $31.39
/ea

Key Features

Blade Material
Polybutylene
CFM @ 0.000-In. SP
92 cfm
Depth
1 1/2 in
Height
3 5/8 in
Housing Material
Polybutylene Terephthalate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2RTJ3
Zoro #
G1263954
UPC #
190735230343
Country of Origin
China

Dimensions

Depth
1 1/2 in
Height
3 5/8 in
Width
3 5/8 in
Fan Depth
1-1/2"
Fan Height
3-5/8"
Fan Width
3-5/8"
Fan Width
3-5/8"
Lead Length
11 13/16 in

Details

Blade Material
Polybutylene
CFM @ 0.000-In. SP
92 cfm
Housing Material
Polybutylene Terephthalate
Shape
Square
Watts
12.2 W
Voltage
24V DC
dBA
57.6
Max. Ambient Temp.
158 Degrees F
Mounting Eye O.C.
3 1/4 in
Item
Axial Fan
Mounting Eye O.C. - Fans
3-1/4"
Fan dBA
57.6
Amps
0.51 A
Bearings
Ball
Electrical Connection - Fans
Lead Wires
Fan Item
Axial Fan
Fan RPM
4900
Housing Finish
Black Painted
Standards
CE Certified and RoHS Compliant, UL Component Recognized for US and Canada
Fan Shape
Square
Hz
60/50 Hz
Mounting Position
Horizontal/Vertical
Fan Watts
12.2
Motor Insulation
A
Thermal Protection
Yes
Fan Voltage
24VDC
Electrical Connections
12" Leads
IP Rating
IP20
Bearing Type
Ball
RPM
4,900 RPM
Color
Black
Environmental Applications
Equipment Cooling
Motor Design
Brushless DC
Includes Filter
No
Sound Level - Minimum
57.6 dBA
Removable Base
Permanently Lubricated
Environment Rating
Dry
Sound Level
57.6 dBA
Includes Guard
No

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 3 1/4 in, Height 3 5/8 in, Depth 1 1/2 in, Width 3 5/8 in, CFM @ 0.000-In. SP 92 cfm, Watts 12.2 W, Voltage 24V DC, - Hz, 0.51 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 57.6, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Ball, 4900 RPM RPM, Motor Design Brushless DC, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F, Blade Material Polybutylene
