  11. Belt Drive Mtr, SplitPh, ODP, 1/4HP, 1725rpm
Shop All Split-Phase AC Motors
Dayton

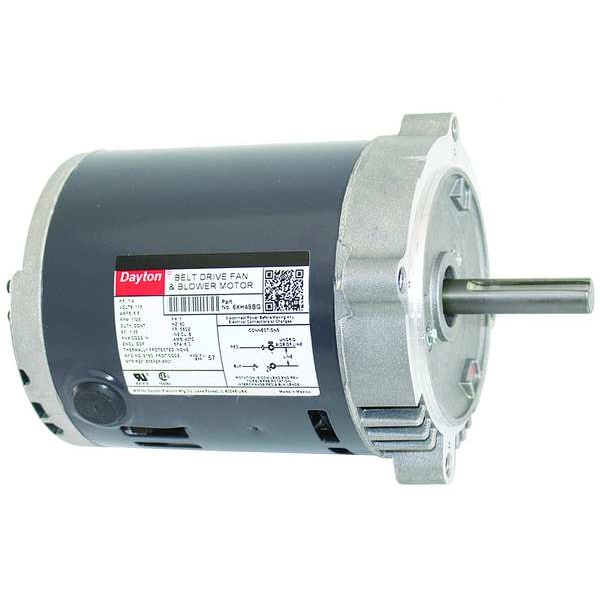

Belt Drive Mtr, SplitPh, ODP, 1/4HP, 1725rpm

original price: $251.99
1% off
new price: $246.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Shaft Dia. 5/8 in
  • Motor Mounting Position All Angle
  • Shaft Length 2 1/4 in
  • RPM Range 1,701-1,800
  • No. of Speeds 1
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Shaft Length 2 1/4 in
Manufacturers Warranty Length 1 yr

Details

Motor Mounting Position All Angle
RPM Range 1,701-1,800
No. of Speeds 1
Item Belt Drive Motor
Motor Shaft Design Keyed
Motor Design Split-Phase
Motor Sub Application Direct Drive Fan/Blower
Nameplate RPM 1,725
Motor Shaft Rotation CW/CCW
Motor Bearings Ball
Phase Single
Motor Enclosure Design Open Dripproof
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Voltage 115V AC
Motor Thermal Protection None
Motor Frame Material Rolled Steel
Ins. Class B
Motor Mounting Type Face
Standards CSA Certified, UL Recognized
Hz 60 Hz
Max. Ambient Temp. 104 Degrees F
Motor Service Factor 1.35
Frame 56CZ
Motor Application HVAC/R
Duty Continuous
HP 1/4
Frame Material Rolled steel
Full Load Amps 8.6 A
Duty Cycle Continuous

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 8.6 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 5/8 in, Shaft Length 2 1/4 in
