Shop DAYTON

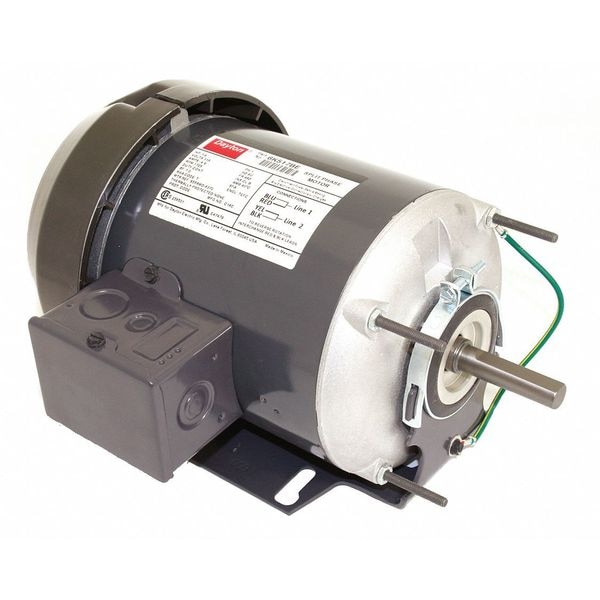

GP Mtr, Split Ph, TEFC, 1/4 HP, 1725 rpm, 48Z

  • Mfr # 6K517
  • Zoro # G1198407
product price:
$
237.99
/ea
Free Shipping & Returns

Key Features

Length Less Shaft
9 in
Max. Ambient Temp.
40 Degrees C
RPM Range
1,701-1,800
Motor Thermal Protection
None
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6K517
Zoro #
G1198407
UPC #
190735366110
Country of Origin
Mexico
Max. Ambient Temp.
40 Degrees C
RPM Range
1,701-1,800
Motor Thermal Protection
None
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Item
General Purpose Motor
Voltage
115V AC
Motor Service Factor
1
Nameplate RPM
1,725 RPM
Nominal Efficiency
55.2 %
HP
1/4 hp
Standards
CSA (156060), UL (E47479)
Full Load Amps
4.9 A
Frame
48Z
Motor Shaft Design
Flat
Motor Mounting Type
Cradle Base
Frame Material
Steel
Motor Application
General Purpose
Motor Enclosure Design
Totally Enclosed Fan Cooled
Phase
Single
Motor Bearings
Ball
Motor Frame Material
Steel
No. of Speeds
1
Footnotes
39
Duty
Continuous
Includes
Conduit Box
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Motor Design
Split-Phase
Motor Efficiency Group
Standard Efficient
RPM Group
1701-1800
Ins. Class
B
Duty Cycle
Continuous
Manufacturers Warranty
1 yr
Frequency
60 Hz
Efficiency Rating
Standard Efficiency (IE1)
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Shaft Design
Flat
Bearing Type
Ball
Insulation Class
B
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
4.9 A
Product Type
General Purpose Motor

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 4.9 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Steel
