  6. Bench Drill Press, Belt Drive, 1/2 hp, 120/240V AC V, 15 in Swing, 16 Speed

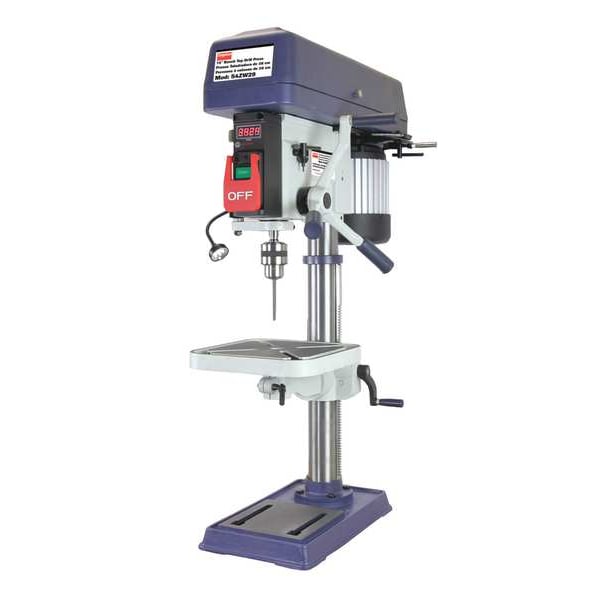

Dayton Bench Drill Press, Belt Drive, 1/2 hp, 120/240V AC V, 15 in Swing, 16 Speed 54ZW29 - main

Bench Drill Press, Belt Drive, 1/2 hp, 120/240V AC V, 15 in Swing, 16 Speed

  • Mfr # 54ZW29

  • Zoro # G9661454

product price:  $1,489.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Drive Type
Belt
Swing
15 in
Voltage
120/240V AC
Motor HP
1/2 hp
Chuck Size
5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
54ZW29
Zoro #
G9661454
UPC #
-
Country of Origin
China

Dimensions

Chuck Size
5/8 in
Overall Width
11 1/2 in
Overall Depth
26 3/4 in
Column Dia.
2 7/8 in
Overall Height
41 in
Base Size
18 in x 10-1/2 in
Table Slot Size
14 mm
Quill Dia.
1 7/8 in
Maximum Spindle-to-Table Height
17 in
Maximum Overall Height
46 in
Table Width
11 1/2 in
Quill Diameter
1 7/8 in
Table Length
11 1/2 in
Table Slot Width
9/16 in
Column Diameter
2 3/4 in
Base Width
10 1/2 in
Maximum Spindle-to-Base Height
27 in
Overall Length
26 3/4 in
Base Length
18 in

Details

Item
Bench Drill Press
Drive Type
Belt
Swing
15 in
Voltage
120/240V AC
Motor HP
1/2 hp
Number of Speeds
16
Capacity Steel
1/2 in
Spindle Speed
138 to 3476 rpm
Includes
Chuck Key Holder, Chuck with Key, Depth Stop Gauge, Horizontal Quill Feed Handle, LED Readout for Spindle Speeds, LED Working Light, V-Belts
Spindle Travel
5 in
Capacity Cast Iron
5/8 in
Hz
60
Tilting Angle
45 Degrees
Corded/Banded
Corded
Drilling Capacity Wood
Not Specified
Spindle to Table
11 in
Max. Spindle To Base
22 3/4 in
Table Work Surface
11-1/2 in x 11-1/2 in
Phase
Single-Phase
Spindle Taper
2MT
Number of T-Slots
4
Power Down Feed Included
No
Amps AC
8.6/4.3
Corded/Cordless
Corded
Application
Production Drill Press
Drilling Capacity in Cast Iron
5/8 in
Speed Range
138 to 3,476 RPM
Chuck Style
Keyed
Coolant System
No
Current
8.6/4.3 A
Radial Arm
No
Spindle-to-Column Distance
7 1/2 in
Guard Included
No
Minimum Spindle Speed
138 RPM
Table Slot
Yes
Primary Material Application
Metal, Wood
Speed Control
Fixed
Table Tilt
45 Degrees
Drilling Capacity in Steel
1/2 in
Downfeed Type
Manual
Table Shape
Square
Horsepower
1/2 hp
Drill Press Type
Benchtop
Power Source
Corded
Number of Spindle Speeds
16
Speed Adjustment
Step Pulley
Drill Press Application
Boring, Countersinking, Drilling, Reaming
Maximum Spindle Speed
3,476 RPM
Standards
ETL Certified USA and Canada

Description

Bench Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Benchtop, Drill Press Application Boring, Countersinking, Drilling, Reaming, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 15 in, Spindle-to-Column Distance 7 1/2 in, Horsepower 1/2 hp, Voltage 120/240V AC, Spindle Taper 2MT, Number of Speeds 16, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included No, Coolant System No, Quill Diameter 1 7/8 in, Drilling Capacity in Steel 1/2 in
