Shop DAYTON

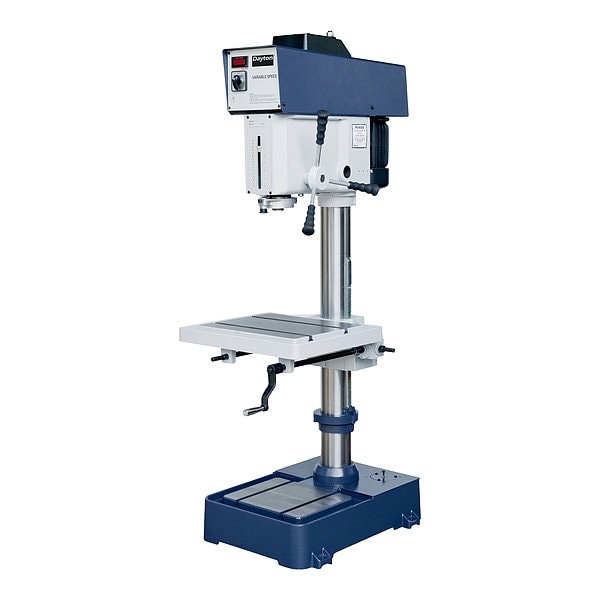

Floor Drill Press, Belt Drive, 115/230V AC V, 20 in Swing, Variable Speed

  • Mfr # 880GK4

  • Zoro # G216054139

product price:
$
5,415.99
/ea
Additional $320.00 delivery surcharge applies per item.
See details

Key Features

Drive Type
Belt
Swing
20 in
Voltage
115/230V AC
Chuck Size
1 1/4 in
Number of Speeds
Variable
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
880GK4
Zoro #
G216054139
UPC #
3663836046672
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size
1 1/4 in
Base Width
19 1/2 in
Column Diameter
4 1/2 in
Base Length
27 3/8 in
Quill Diameter
3 in
Table Length
18 3/4 in
Table Slot Width
8/13 in
Maximum Spindle-to-Base Height
46 1/2 in
Table Width
22 in
Maximum Overall Height
78 3/4 in
Cord Length
5 ft
Maximum Spindle-to-Table Height
33 1/2 in
Base Height
6 1/8 in
Overall Length
37 3/4 in

Details

Item
Floor Drill Press
Drive Type
Belt
Swing
20 in
Voltage
115/230V AC
Number of Speeds
Variable
Power Down Feed Included
No
Phase
Single-Phase
Spindle Travel
6 in
Spindle Taper
MT3
Tilting Angle
Non-Tilting
Includes
Tool Ejector
Number of T-Slots
2
Application
Metalworking
Tool Weight
500 lb
Guard Included
No
Drilling Capacity in Cast Iron
1 1/4 in
Current
24 A
Horsepower
2 hp
Table Slot
Yes
Minimum Spindle Speed
300 RPM
Drilling Capacity in Wood
1 1/4 in
Speed Range
300 to 2000 RPM
Table Shape
Square
Standards
Not Rated
Power Source
Corded
Tapping Compatible
No
Plug Type
Two-Prong
Drilling Capacity in Stainless Steel
1 1/4 in
Drilling Capacity in Steel
1 1/4 in
Primary Material Application
Metal, Wood
Chuck Capacity
1 1/4 in
Chuck Style
Taper
Downfeed Type
Manual
Speed Adjustment
Variable Speed Pulley
Coolant System
No
Speed Control
Variable
Reversible
Yes
Radial Arm
No
Drill Press Application
Drilling
Spindle-to-Column Distance
10 in
Drill Press Type
Floor Stand
Maximum Spindle Speed
2,000 RPM
Table Tilt
No
Number of Spindle Speeds
Variable

Description

Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Variable, Speed Adjustment Variable Speed Pulley, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 2 hp, Voltage 115/230V AC, Spindle Taper MT3, Number of Speeds Variable, Chuck Size 1 1/4 in, Chuck Style Taper, Guard Included No, Coolant System No, Quill Diameter 3 in, Tapping Capacity in Steel Not Applicable
