  5. Booster Pump, 1 1/2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 8 Stage

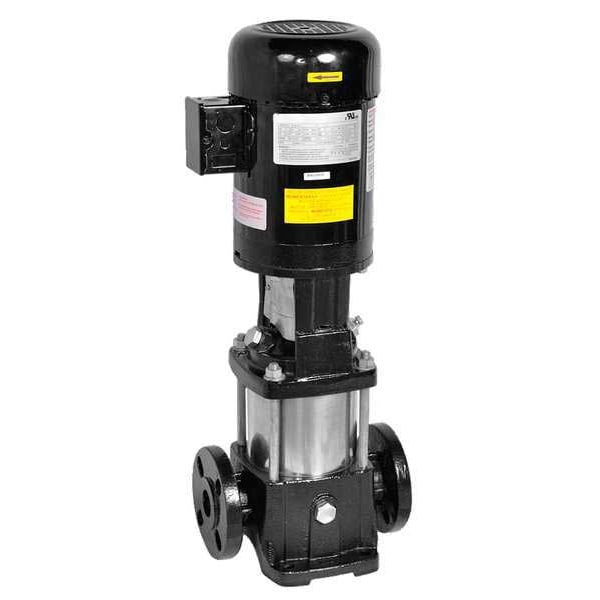

Dayton Booster Pump, 1 1/2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 8 Stage 5UWJ8 - main

Booster Pump, 1 1/2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 8 Stage

  • Mfr # 5UWJ8

  • Zoro # G0252865

product price:  $1,398.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1 1/2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5UWJ8
Zoro #
G0252865
UPC #
190735352830
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Length
9 7/8 in
Width
8 3/4 in
Height
25 3/4 in
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
5/64 in
Overall Width
8.75 in
Overall Length
9.88 in
Overall Height
25.75 in
Solid Diameter (Maximum)
0.07 in
Compatible Discharge Pipe Size
1 1/4 in
Discharge Flange Size
1 1/4 in
Intake Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/4 in
Discharge Diameter
1 1/4 in
Solids Diameter - Maximum
0.07 in
Inlet Diameter
1 1/4 in

Details

Item
Booster Pump
Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1 1/2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
8
Max. Pressure - Pumps
108 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Max. Pressure
108 psi
GPM @ 40 PSI
22
Phase
Three
Wetted Materials
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Includes
Manual
Max. Case Pressure
245 psi
Motor RPM
3,450 RPM
Bearing Type
Ball
GPM @ 80 PSI
14
Motor Type
3-Phase
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Motor Ambient Temp. Rating
40 Degrees C
Frame
56c
Pump Mounting Position
Horizontal
Best Efficiency GPM @ PSI
16 @ 78
Duty
Continuous
Inlet
1-1/4" FNPT
Amps
4.2/2.1 A
Max. Liquid Temp.
248 Degrees F
Suction Lift
0 ft
Seal Material
EPDM/Silicon Carbide/Stainless Steel
Housing Material
Cast iron
GPM @ 100 PSI
5
HP
1-1/2
GPM @ 60 PSI
19
Impeller Type
Closed
Agency Compliance
c UL us
Voltage
208-230/460
Impeller Material
Stainless Steel
Outlet
1-1/4" FNPT
Stages
8
Hz
60
Standards
cULus Listed
Flow Rate @ 80 psi
14 gpm
Motor Ambient Temperature (Minimum)
40 Degrees F
Mounting Orientation
Vertical
Best Efficiency Pressure
78 psi
Discharge Type
Flange
Maximum RPM
3,450 RPM
Case Pressure (Maximum)
245 psi
Number of Stages
8
Flow Rate @ 90 psi
10 gpm
Motor Ambient Temperature (Maximum)
104 Degrees F
Wetted Material
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Flow Rate @ 70 psi
17 gpm
Flow Rate @ 50 psi
21.5 gpm
Maximum Media Temperature
248 Degrees F
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Flow Rate @ 40 psi
22 gpm
Flow Rate @ 60 psi
19 gpm
Shut Off Pressure (Maximum)
108 psi
Intake Type
Flange
Flow Rate @ 100 psi
5 gpm
Pump Housing Material
Cast Iron
Impeller Design
Closed
Frequency
60 Hz
Horsepower
1 1/2 hp
For Use With Potable Systems
No
Motor Frame Designation
56C
Duty Cycle
Continuous
Nameplate Voltage
230/460V AC
Suction Lift (Maximum)
0 ft
Compatible with Media Type
Non-Abrasive Liquids, Water
Motor Ambient Temperature - Minimum
40 Degrees F
Motor Enclosure Design
Totally Enclosed Fan Cooled
Power Source
Corded Electric
Motor Design
Three-Phase
Inlet Standard
Flange
Revolutions Per Minute - Maximum
3,450 RPM
Inlet Gender
Female
Pump Casing Material
Cast Iron
Discharge Standard
Flange
Installation
Floor Standing
Best Efficiency Flow
16 gpm
Motor Ambient Temperature - Maximum
104 Degrees F
Media Temperature - Maximum
248 Degrees F
Shut Off Pressure - Maximum
108 psi
Suction Lift - Maximum
0 ft
Media Temperature - Minimum
0 Degrees F
Case Pressure - Maximum
245 psi
Full Load Current
4.2/2.1 A

Description

Booster Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 1 1/2 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 psi 22 gpm, Flow Rate @ 50 psi 21.5 gpm, Flow Rate @ 60 psi 19 gpm, Flow Rate @ 70 psi 17 gpm, Flow Rate @ 80 psi 14 gpm, Flow Rate @ 90 psi 10 gpm, Flow Rate @ 100 psi 5 gpm, Shut Off Pressure (Maximum) 108 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
