Shop GOULDS WATER TECHNOLOGY

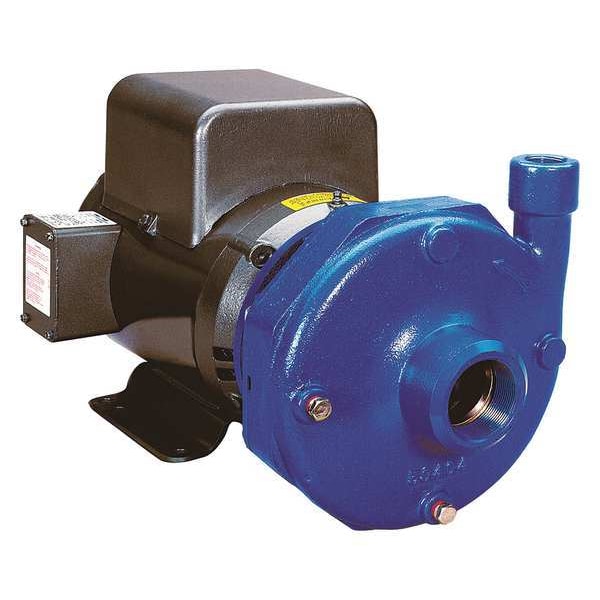

Centrifugal Pump, 7-1/2 HP, 91 ft. Head

  • Mfr # 6BF1KBE0
  • Zoro # G4848089
product price:
$
3,898.99
/ea
Additional $105.00 delivery surcharge applies per item.
See details

Key Features

HP - Pumps
7 1/2 hp
Voltage - Pumps
208V AC to 240V AC, 480V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Inlet Size - Pumps
4 in Flange
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6BF1KBE0
Zoro #
G4848089
UPC #
697666912244
Country of Origin
United States

Dimensions

Inlet Size - Pumps
4 in Flange
Outlet Size - Pumps
3 in Flange
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
1/2 in
Intake Size
4 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
4 in
Solid Diameter (Maximum)
0.5 in
Overall Length
25.1 in
Overall Width
8.6 in
Compatible Discharge Pipe Size
3 in
Discharge Flange Size
3 in
Overall Height
10.5 in
Discharge Diameter
3 in
Inlet Diameter
4 in
Motor Frame Size
184JM
Impeller Diameter
5 1/8 in
Wire Rope Length
25.1 in
Length
25.1 in
Fits Chest Size
Back Pull Out to Reduce Maintenance Down Time, Dynamic Balancing, Renewable Wear Rings

Details

HP - Pumps
7 1/2 hp
Voltage - Pumps
208V AC to 240V AC, 480V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Max. Head
91 ft
Max. Pressure - Pumps
175 psi
Motor Enclosure - Pumps
Open Dripproof
Best Efficiency GPM @ Head
300 @ 73 ft
Frame
184JM
Amps
17.2/8.6
Max. Case Pressure
175 psi
Item - Straight Centrifugal Pumps
Straight Centrifugal High Head Pump
Phase
Three
Wetted Materials
303 Stainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N
Hz
60 Hz
Outlet
3" Flange
Motor Type
JM
Max. Pressure
175 psi
Motor Enclosure
Open Drip Proof
Max. GPM @ Head
450 @ 30 ft
Best Efficiency Range GPM @ Head
225 to 365 gpm @ 85 to 55 ft
Voltage
208V AC to 230V AC, 460V AC
Motor RPM
3,500 RPM
HP
7-1/2
Max. Liquid Temp.
212 Degrees F
Item
Centrifugal Pump
Min. GPM @ Head
100 @ 90 ft
Seal Material
316 Stainless Steel, Buna Elastomer, Carbon, Ceramic
Inlet
4" Flange
Housing Material
Cast iron
Impeller Material
Bronze
Minimum Flow Rate
100 gpm
Seal Type
Mechanical Type 21
Compatible with Media Type
Water
Maximum Feet of Head
92 ft
Flow Rate @ 40 ft of Head (Maximum)
430 gpm
Features
Back Pull Out to Reduce Maintenance Down Time, Dynamic Balancing, Renewable Wear Rings
Discharge Rotation
90 Degrees Increments
Wetted Material
316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
Flow Rate @ 50 ft of Head (Maximum)
400 gpm
Flow Rate @ 80 ft of Head (Maximum)
260 gpm
Mounting Orientation
Horizontal
Impeller Design
Closed
Discharge Type
Flange
Frequency
60 Hz
For Use With Potable Systems
Yes
Best Efficiency Flow
300 gpm
Nameplate Voltage
208-230/460V AC
Flow Rate @ 70 ft of Head (Maximum)
320 gpm
Duty Cycle
Continuous
Standards
ANSI 61, NSF Certified
Flow Rate @ 90 ft of Head (Maximum)
100 gpm
Maximum Media Temperature
212 Degrees F
Horsepower
7 1/2 hp
Pump Housing Material
Cast Iron
Motor Frame Designation
184JM
Intake Type
Flange
Series
3656
Flange or Union Included
Yes
Maximum Flow Rate
450 gpm
Priming
Manual
Pumping Application
Booster Services
Best Efficiency Head
73 ft
Shaft Material
Stainless Steel
Maximum RPM
3,500 RPM
Flow Rate @ 60 ft of Head (Maximum)
360 gpm
Shut Off Pressure (Maximum)
175 psi
Inlet Orientation
Top
Flow Rate (Maximum)
450 gpm
Pump Design
End Suction
Feet of Head (Maximum)
92 ft
Case Pressure - Maximum
125 psi
Inlet Position
Offset
Media Temperature - Minimum
-10 Degrees F
Number of Stages
1
Discharge Position
Offset
Shaft Seal Type
Mechanical
Media Temperature - Maximum
212 Degrees F
Drive Coupling Type
No Coupling
Volute Material
Cast Iron
Discharge Rotation Increments
0 Degrees
Shaft Seal Material
316 Stainless Steel, Buna-N Elastomer, Carbon Rotary, Ceramic Stationary
Hazardous Location Class
Not Rated
Chemical Compatibility
Water
Motor Speed - Maximum
3,500 RPM
Shut Off Pressure - Maximum
175 psi
Flow Rate (Minimum)
100 gpm
Inlet Standard
Flange
Discharge Standard
Flange
Discharge Orientation
Side

Description

Centrifugal Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 7 1/2 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 430 gpm, Flow Rate @ 60 ft of Head (Maximum) 360 gpm, Flow Rate @ 80 ft of Head (Maximum) 260 gpm, Maximum Feet of Head 92 ft, Compatible Intake Pipe Size 4 in, Intake Type Flange, Compatible Discharge Pipe Size 3 in, Discharge Type Flange, Motor Enclosure Open Drip Proof, Maximum Flow Rate 450 gpm
