Shop DAYTON

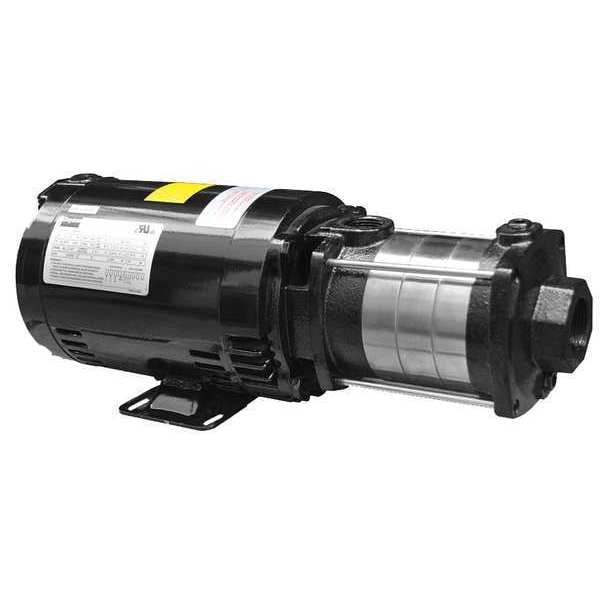

Booster Pump, 1 1/2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in NPT Inlet Size, 4 Stage

  • Mfr # 5UXG2

  • Zoro # G0667265

product price:
$
762.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1 1/2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Inlet Size - Pumps
1-1/4 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UXG2
Zoro #
G0667265
UPC #
190735353110
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in NPT
Outlet Size - Pumps
1 in NPT
Width
6 1/2 in
Height
6 5/16 in
Manufacturers Warranty Length
1 yr
Length
18.5 in
Max. Dia. Solids
5/64 in
Overall Length
18.5 in
Overall Width
6.5 in
Overall Height
6.31 in
Manufacturer Warranty Length
1 yr
Solid Diameter (Maximum)
0.07 in
Compatible Intake Pipe Size
1 1/4 in
Compatible Discharge Pipe Size
1 in
Intake Size
1 1/4 in
Solids Diameter - Maximum
0.07 in
Discharge Diameter
1 in
Inlet Diameter
1 1/4 in
Wire Rope Length
18.5 in

Details

Booster Pump Type
Multi-Stage Booster Pump
Item
Booster Pump
HP - Pumps
1 1/2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
4
Max. Pressure - Pumps
81 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Open Dripproof
Hz
60
Inlet
1-1/4" FNPT
Stages
4
Wetted Materials
Buna N, Carbon/Ceramic, Cast Iron, Stainless Steel
Max. Liquid Temp.
194 Degrees F
GPM @ 20 PSI
48
HP
1-1/2
Impeller Type
Closed
Impeller Material
Cast Iron
Amps
4.4-3.9/2 A
Phase
Three
Duty
Continuous
Housing Material
Cast iron
Pump Mounting Position
Horizontal or Vertical with Inlet Down
Max. Pressure
81 psi
Voltage
208-230/460
GPM @ 60 PSI
23
GPM @ 80 PSI
1.9
Suction Lift
5 ft with a Foot Valve
Seal Material
Buna-N/Carbon/Ceramic/Stainless Steel
Motor Enclosure
Open Dripproof (ODP)
Outlet
1" FNPT
GPM @ 40 PSI
38
Agency Compliance
c UL us
GPM @ 10 PSI
52
Motor Type
3-Phase
Motor Ambient Temp. Rating
40 Degrees C
Max. Case Pressure
150 psi
Best Efficiency GPM @ PSI
35 @ 45
Motor RPM
3,450 RPM
Frame
56J
Bearing Type
Ball
Includes
Manual
Standards
cULus Listed
Best Efficiency Pressure
45 psi
Flow Rate @ 40 psi
38 gpm
Impeller Design
Closed
Mounting Orientation
Horizontal
Flow Rate @ 70 psi
13 gpm
For Use With Potable Systems
No
Shut Off Pressure (Maximum)
81 psi
Compatible with Media Type
Non-Flammable Liquids, Water
Flow Rate @ 80 psi
1.9 gpm
Motor Ambient Temperature (Maximum)
104 Degrees F
Discharge Type
NPT
Maximum RPM
3,450 RPM
Nameplate Voltage
230/460V AC
Intake Type
NPT
Case Pressure (Maximum)
150 psi
Priming
Manual
Motor Ambient Temperature (Minimum)
40 Degrees F
Number of Stages
4
Motor Frame Designation
56J NEMA
Pump Housing Material
Cast Iron
Maximum Media Temperature
194 Degrees F
Horsepower
1 1/2 hp
Flow Rate @ 20 psi
48 gpm
Flow Rate @ 50 psi
31 gpm
Flow Rate @ 60 psi
23 gpm
Frequency
60 Hz
Flow Rate @ 30 psi
43 gpm
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Flow Rate @ 10 psi
52 gpm
Pumping Application
Dairy Walls and Floors, Lawn Sprinkling and Insecticide Spraying, Rinsing/Spray Cooling Equipment, Washing Buildings
Duty Cycle
Continuous
Suction Lift (Maximum)
5 ft
Discharge Standard
NPT
Pump Casing Material
Cast Iron
Full Load Current
4.4-3.9/2 A
Motor Design
Three-Phase
Installation
Floor Standing
Suction Lift - Maximum
5 ft
Media Temperature - Minimum
0 Degrees F
Motor Enclosure Design
Open Drip Proof
Best Efficiency Flow
26 gpm
Motor Ambient Temperature - Minimum
40 Degrees F
Motor Ambient Temperature - Maximum
104 Degrees F
Media Temperature - Maximum
194 Degrees F
Inlet Standard
NPT
Case Pressure - Maximum
150 psi
Shut Off Pressure - Maximum
81 psi
Revolutions Per Minute - Maximum
3,450 RPM
Power Source
Corded Electric
Inlet Gender
Female
Flow Rate - Maximum
52 gpm
Feet of Head - Maximum
187 ft
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Booster Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 1 1/2 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 10 psi 52 gpm, Flow Rate @ 20 psi 48 gpm, Flow Rate @ 30 psi 43 gpm, Flow Rate @ 40 psi 38 gpm, Flow Rate @ 50 psi 31 gpm, Flow Rate @ 60 psi 23 gpm, Flow Rate @ 70 psi 13 gpm, Flow Rate @ 80 psi 1.9 gpm, Shut Off Pressure (Maximum) 81 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Intake Type NPT
