  5. Booster Pump, 1 1/2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 8 Stage

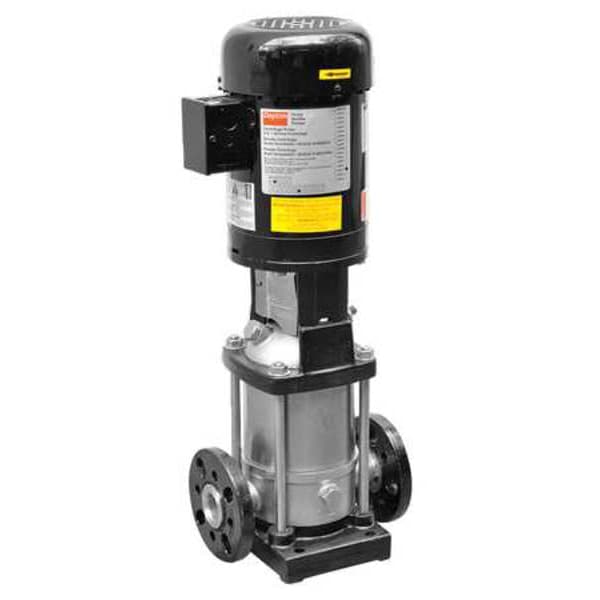

Dayton Booster Pump, 1 1/2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 8 Stage 5UWL4 - main

Booster Pump, 1 1/2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 8 Stage

  • Mfr # 5UWL4

  • Zoro # G1718771

product price:  $1,627.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1 1/2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5UWL4
Zoro #
G1718771
UPC #
190735352991
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Max. Dia. Solids
5/64 in
Width
9 in
Height
25 3/4 in
Manufacturers Warranty Length
1 yr
Length
9 7/8 in
Overall Height
25.75 in
Overall Length
9.88 in
Overall Width
9 in
Intake Size
1 1/4 in
Compatible Intake Pipe Size
1 1/4 in
Discharge Flange Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Solid Diameter (Maximum)
0.07 in
Compatible Discharge Pipe Size
1 1/4 in
Inlet Diameter
1 1/4 in
Discharge Diameter
1 1/4 in
Solids Diameter - Maximum
0.07 in

Details

Booster Pump Type
Multi-Stage Booster Pump
Item
Booster Pump
HP - Pumps
1 1/2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
8
Max. Pressure - Pumps
108 psi
Housing Material - Pumps
Stainless Steel
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Suction Lift
0 ft
Hz
60
Frame
56c
Wetted Materials
EPDM, Silicon Carbide, Stainless Steel
Motor Ambient Temp. Rating
40 Degrees C
Max. Liquid Temp.
248 Degrees F
Duty
Continuous
HP
1-1/2
Amps
4.2/2.1 A
Housing Material
Stainless Steel
Phase
Three
Stages
8
Max. Pressure
108 psi
GPM @ 80 PSI
14
Impeller Material
Stainless Steel
Agency Compliance
c UL us
Seal Material
EPDM/Silicon Carbide/Stainless Steel
Max. Case Pressure
245 psi
GPM @ 40 PSI
22
Outlet
1-1/4" FNPT
Motor Type
3-Phase
Pump Mounting Position
Horizontal
Impeller Type
Closed
Voltage
208-230/460
Motor RPM
3,450 RPM
GPM @ 60 PSI
19
GPM @ 100 PSI
5
Best Efficiency GPM @ PSI
16 @ 78
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Inlet
1-1/4" FNPT
Includes
Manual
Bearing Type
Ball
Standards
cULus Listed
Maximum RPM
3,450 RPM
Suction Lift (Maximum)
0 ft
Number of Stages
8
Maximum Media Temperature
248 Degrees F
Wetted Material
EPDM, Silicon Carbide, Stainless Steel
Frequency
60 Hz
Shut Off Pressure (Maximum)
108 psi
For Use With Potable Systems
No
Case Pressure (Maximum)
245 psi
Impeller Design
Closed
Duty Cycle
Continuous
Flow Rate @ 100 psi
5 gpm
Horsepower
1 1/2 hp
Best Efficiency Pressure
78 psi
Flow Rate @ 80 psi
14 gpm
Pump Housing Material
Stainless Steel
Flow Rate @ 50 psi
20.5 gpm
Motor Ambient Temperature (Maximum)
104 Degrees F
Nameplate Voltage
230/460V AC
Intake Type
Flange
Flow Rate @ 90 psi
10 gpm
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Motor Frame Designation
56C
Motor Ambient Temperature (Minimum)
40 Degrees F
Flow Rate @ 40 psi
22 gpm
Flow Rate @ 70 psi
16.5 gpm
Discharge Type
Flange
Flow Rate @ 60 psi
19 gpm
Mounting Orientation
Vertical
Compatible with Media Type
Non-Abrasive Liquids, Water
Inlet Standard
Flange
Power Source
Corded Electric
Motor Enclosure Design
Totally Enclosed Fan Cooled
Revolutions Per Minute - Maximum
3,450 RPM
Discharge Standard
Flange
Suction Lift - Maximum
0 ft
Full Load Current
4.2/2.1 A
Shut Off Pressure - Maximum
108 psi
Motor Design
Three-Phase
Motor Ambient Temperature - Maximum
104 Degrees F
Motor Ambient Temperature - Minimum
40 Degrees F
Case Pressure - Maximum
245 psi
Inlet Gender
Female
Installation
Floor Standing
Media Temperature - Minimum
0 Degrees F
Pump Casing Material
Stainless Steel
Media Temperature - Maximum
248 Degrees F
Best Efficiency Flow
16 gpm

Description

Booster Pump, Phase Three, Pump Housing Material Stainless Steel, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 1 1/2 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 psi 22 gpm, Flow Rate @ 50 psi 20.5 gpm, Flow Rate @ 60 psi 19 gpm, Flow Rate @ 70 psi 16.5 gpm, Flow Rate @ 80 psi 14 gpm, Flow Rate @ 90 psi 10 gpm, Flow Rate @ 100 psi 5 gpm, Shut Off Pressure (Maximum) 108 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
