  5. Booster Pump, 1 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 5 Stage

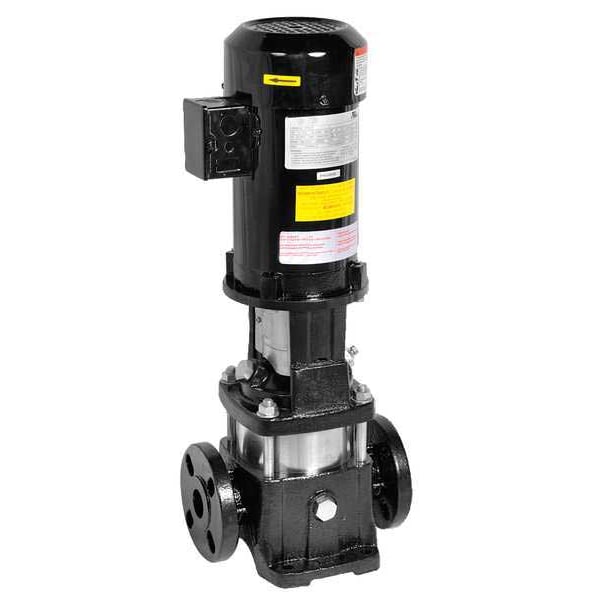

Dayton Booster Pump, 1 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 5 Stage 5UWJ7 - main

Booster Pump, 1 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 5 Stage

  • Mfr # 5UWJ7

  • Zoro # G0584001

product price:  $1,421.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5UWJ7
Zoro #
G0584001
UPC #
190735352823
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Height
24 2/3 in
Manufacturers Warranty Length
1 yr
Length
9 7/8 in
Max. Dia. Solids
5/64 in
Width
8 in
Overall Length
9.88 in
Overall Width
8 in
Overall Height
24.66 in
Intake Size
1 1/4 in
Discharge Flange Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Solid Diameter (Maximum)
0.07 in
Compatible Intake Pipe Size
1 1/4 in
Compatible Discharge Pipe Size
1 1/4 in
Discharge Diameter
1 1/4 in
Solids Diameter - Maximum
0.07 in
Inlet Diameter
1 1/4 in

Details

Item
Booster Pump
Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
5
Max. Pressure - Pumps
66 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Impeller Material
Stainless Steel
Max. Liquid Temp.
248 Degrees F
Housing Material
Cast iron
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Phase
Three
Wetted Materials
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Seal Material
EPDM/Silicon Carbide/Stainless Steel
Bearing Type
Ball
Pump Mounting Position
Horizontal
Max. Pressure
66 psi
Inlet
1-1/4" FNPT
Best Efficiency GPM @ PSI
16 @ 45
Includes
Manual
Stages
5
Impeller Type
Closed
Motor RPM
3,450 RPM
Frame
56c
Motor Type
3-Phase
Hz
60
Agency Compliance
c UL us
Amps
3.3-3.2/1.6 A
Suction Lift
0 ft
Max. Case Pressure
362 psi
Outlet
1-1/4" FNPT
GPM @ 60 PSI
6
Motor Ambient Temp. Rating
40 Degrees C
HP
1
Voltage
208-230/460
GPM @ 40 PSI
17
Duty
Continuous
Standards
cULus Listed
For Use With Potable Systems
No
Compatible with Media Type
Non-Abrasive Liquids, Water
Flow Rate @ 60 psi
6 gpm
Maximum Media Temperature
248 Degrees F
Flow Rate @ 40 psi
17 gpm
Case Pressure (Maximum)
362 psi
Nameplate Voltage
230/460V AC
Maximum RPM
3,450 RPM
Flow Rate @ 50 psi
12 gpm
Horsepower
1 hp
Motor Ambient Temperature (Maximum)
104 Degrees F
Intake Type
Flange
Frequency
60 Hz
Impeller Design
Closed
Duty Cycle
Continuous
Wetted Material
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Motor Frame Designation
56C
Shut Off Pressure (Maximum)
66 psi
Motor Ambient Temperature (Minimum)
40 Degrees F
Best Efficiency Pressure
45 psi
Mounting Orientation
Vertical
Number of Stages
5
Discharge Type
Flange
Suction Lift (Maximum)
0 ft
Pump Housing Material
Cast Iron
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Discharge Standard
Flange
Full Load Current
3.3-3.2/1.6 A
Motor Ambient Temperature - Minimum
40 Degrees F
Media Temperature - Maximum
248 Degrees F
Inlet Standard
Flange
Best Efficiency Flow
17 gpm
Case Pressure - Maximum
362 psi
Suction Lift - Maximum
0 ft
Media Temperature - Minimum
0 Degrees F
Revolutions Per Minute - Maximum
3,450 RPM
Installation
Floor Standing
Motor Ambient Temperature - Maximum
104 Degrees F
Shut Off Pressure - Maximum
66 psi
Power Source
Corded Electric
Inlet Gender
Female
Motor Enclosure Design
Totally Enclosed Fan Cooled
Pump Casing Material
Cast Iron
Motor Design
Three-Phase

Description

Booster Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 1 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 psi 17 gpm, Flow Rate @ 50 psi 12 gpm, Flow Rate @ 60 psi 6 gpm, Shut Off Pressure (Maximum) 66 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange, Mounting Orientation Vertical, For Use With Potable Systems No, Amps 3.3-3.2/1.6 A, Best Efficiency Pressure 45 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
