Shop DAYTON

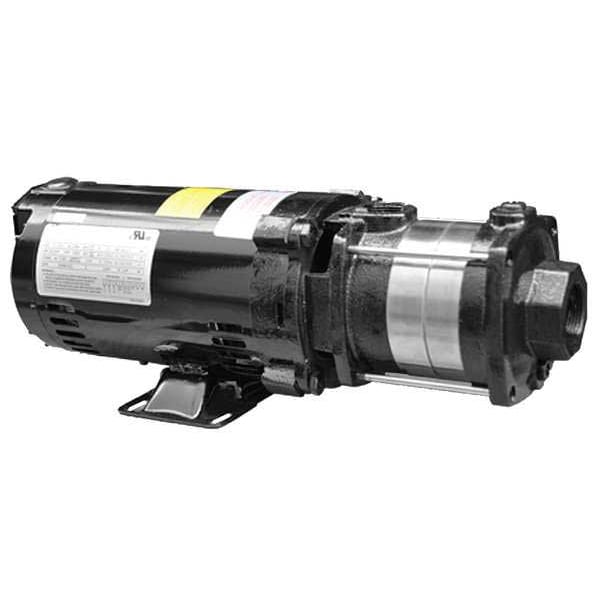

Booster Pump, 1 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in NPT Inlet Size, 3 Stage

  • Mfr # 5UXG1

  • Zoro # G1358131

product price:
$
808.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Inlet Size - Pumps
1-1/4 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5UXG1
Zoro #
G1358131
UPC #
190735353103
Country of Origin
India
Item
Booster Pump
Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
3
Max. Pressure - Pumps
59 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Open Dripproof
Motor Enclosure
Open Dripproof (ODP)
Motor Type
3-Phase
Motor RPM
3,450 RPM
Stages
3
Duty
Continuous
Seal Material
Buna-N/Carbon/Ceramic/Stainless Steel
Housing Material
Cast iron
Bearing Type
Ball
Max. Liquid Temp.
194 Degrees F
Wetted Materials
Buna N, Carbon/Ceramic, Cast Iron, Stainless Steel
Amps
3.7-3.2/1.6 A
Outlet
1" FNPT
Phase
Three
Motor Ambient Temp. Rating
40 Degrees C
Hz
60
Frame
56J
HP
1
Impeller Type
Closed
Inlet
1-1/4" FNPT
GPM @ 20 PSI
43
Voltage
208-230/460
Includes
Manual
GPM @ 40 PSI
27
Max. Case Pressure
150 psi
Pump Mounting Position
Horizontal or Vertical with Inlet Down
Best Efficiency GPM @ PSI
31 @ 81
Max. Pressure
59 psi
GPM @ 10 PSI
50
Impeller Material
Cast Iron
Suction Lift
5 ft with a Foot Valve
Agency Compliance
c UL us
Standards
cULus Listed
Number of Stages
3
Priming
Manual
Motor Frame Designation
56J NEMA
Frequency
60 Hz
Suction Lift (Maximum)
5 ft
Motor Ambient Temperature (Minimum)
40 Degrees F
Flow Rate @ 30 psi
35.5 gpm
Flow Rate @ 50 psi
15 gpm
Horsepower
1 hp
Flow Rate @ 20 psi
43 gpm
Discharge Type
NPT
Intake Type
NPT
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Flow Rate @ 10 psi
50 gpm
Best Efficiency Pressure
81 psi
Duty Cycle
Continuous
Case Pressure (Maximum)
150 psi
Mounting Orientation
Horizontal
Maximum Media Temperature
194 Degrees F
Motor Ambient Temperature (Maximum)
104 Degrees F
Shut Off Pressure (Maximum)
59 psi
Flow Rate @ 40 psi
27 gpm
For Use With Potable Systems
No
Pumping Application
Dairy Walls and Floors, Lawn Sprinkling and Insecticide Spraying, Rinsing/Spray Cooling Equipment, Washing Buildings
Impeller Design
Closed
Pump Housing Material
Cast Iron
Compatible with Media Type
Non-Flammable Liquids, Water
Maximum RPM
3,450 RPM
Nameplate Voltage
230/460V AC
Power Source
Corded Electric
Case Pressure - Maximum
150 psi
Full Load Current
3.7-3.2/1.6 A
Discharge Standard
NPT
Media Temperature - Maximum
194 Degrees F
Motor Enclosure Design
Open Drip Proof
Shut Off Pressure - Maximum
59 psi
Suction Lift - Maximum
5 ft
Inlet Gender
Female
Installation
Floor Standing
Best Efficiency Flow
31 gpm
Media Temperature - Minimum
0 Degrees F
Inlet Standard
NPT
Pump Casing Material
Cast Iron
Motor Ambient Temperature - Minimum
40 Degrees F
Motor Ambient Temperature - Maximum
104 Degrees F
Revolutions Per Minute - Maximum
3,450 RPM
Motor Design
Three-Phase
Feet of Head - Maximum
136 ft
Flow Rate - Maximum
50 gpm
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Booster Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 1 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 10 psi 50 gpm, Flow Rate @ 20 psi 43 gpm, Flow Rate @ 30 psi 35.5 gpm, Flow Rate @ 40 psi 27 gpm, Flow Rate @ 50 psi 15 gpm, Shut Off Pressure (Maximum) 59 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 in, Intake Type NPT, Mounting Orientation Horizontal, For Use With Potable Systems No, Amps 3.7-3.2/1.6 A
