Shop DAYTON

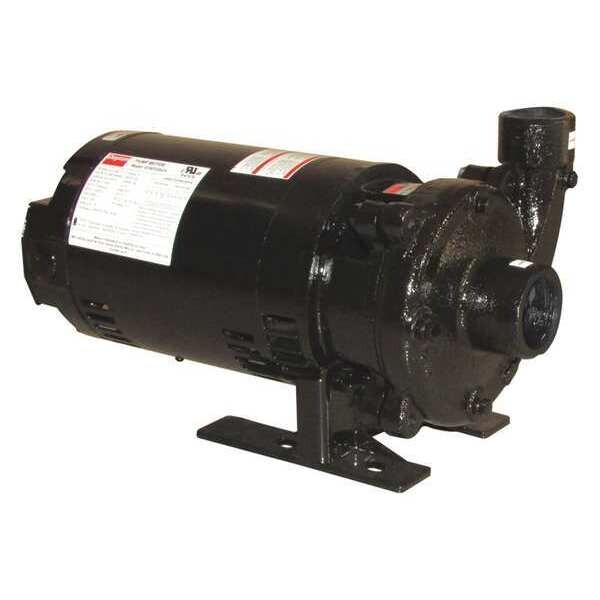

Pressure Booster Pump, 2 hp, 208 to 240/480V AC, 3 Phase, 1-1/2 in NPT Inlet Size, 1 Stage

  • Mfr # 45MW25

  • Zoro # G4596107

product price:
$
1,005.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Booster Pump
HP - Pumps
2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Inlet Size - Pumps
1-1/2 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
45MW25
Zoro #
G4596107
UPC #
190735893067
Country of Origin
India
Booster Pump Type
Booster Pump
Item
Booster Pump
HP - Pumps
2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
1
Max. Pressure - Pumps
42 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Open Dripproof
Housing Material
Cast iron
Bearing Type
Double Sealed
Motor Type
3-Phase
Frame
56J
Motor Enclosure
Open Dripproof (ODP)
Amps
7.1-6.8/3.4 A
Max. PSI Boost @ 2-10 GPM
44.5
Voltage
208-230/460
Motor RPM
3450
Wetted Materials
Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel
Motor Ambient Temp. Rating
65 Degrees C
Phase
Three
Max. Pressure
42 psi
Impeller Material
Stainless Steel
For Use With
Nonflammable Liquids Compatible with Pump Component Materials
Includes
Manual
Duty
Continuous
Max. PSI Boost @ 20 GPM
44
Type
Booster
Inlet (In.)
1-1/2
Max. Case Pressure
100 psi
GPM @ 40 PSI
40
Stages
1
GPM @ 30 PSI
65
HP
2
Impeller Type
Closed
Best Efficiency GPM @ PSI
57 @ 40
Inlet
1-1/2"
Hz
60
GPM @ 25 PSI
78
Seal Material
Buna-N/Carbon/Silicone Carbide/Stainless Steel
Outlet
1-1/4"
GPM @ 35 PSI
55
Max. PSI Boost @ 30 GPM
43
Agency Compliance
cULus
Standards
cULus Listed
Compatible with Media Type
Water
Motor Frame Designation
56J NEMA
For Use With Potable Systems
No
Shut Off Pressure (Maximum)
42 psi
Maximum Media Temperature
200 Degrees F
Pump Housing Material
Cast Iron
Discharge Type
NPT
Motor Ambient Temperature (Maximum)
149 Degrees F
Maximum RPM
3,450 RPM
Suction Lift (Maximum)
25 ft
Case Pressure (Maximum)
100 psi
Pumping Application
General Service in Farm, Liquid Transfer, Pressure Boosting, Water Supply
Motor Ambient Temperature (Minimum)
65 Degrees F
Duty Cycle
Continuous
Flow Rate @ 40 psi
40 gpm
Best Efficiency Pressure
40 psi
Number of Stages
1
Horsepower
2 hp
Flow Rate @ 30 psi
65 gpm
Frequency
60 Hz
Discharge Rotation
90 Degrees
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Impeller Design
Closed
Nameplate Voltage
230/460V AC
Mounting Orientation
Horizontal
Pressure Boost (Maximum)
44 psi
Intake Type
NPT
Priming
Manual
Power Source
Corded Electric
Discharge Standard
NPT
Revolutions Per Minute - Maximum
3,450 RPM
Media Temperature - Minimum
0 Degrees F
Full Load Current
7.1-6.8/3.4 A
Best Efficiency Flow
82 gpm
Motor Design
Three-Phase
Suction Lift - Maximum
25 ft
Inlet Gender
Female
Pressure Boost - Maximum
44 psi
Inlet Standard
NPT
Motor Enclosure Design
Open Drip Proof
Installation
Floor Standing
Media Temperature - Maximum
200 Degrees F
Pump Casing Material
Cast Iron
Motor Ambient Temperature - Maximum
149 Degrees F
Shut Off Pressure - Maximum
42 psi
Motor Ambient Temperature - Minimum
65 Degrees F
Case Pressure - Maximum
100 psi
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Booster Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 2 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 30 psi 65 gpm, Flow Rate @ 40 psi 40 gpm, Shut Off Pressure (Maximum) 42 psi, Compatible Intake Pipe Size 1 1/2 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type NPT, Mounting Orientation Horizontal, For Use With Potable Systems No, Amps 7.1-6.8/3.4 A, Best Efficiency Pressure 40 psi, Case Pressure (Maximum) 100 psi
