  11. Brake, Motor, 6 Ft Lb

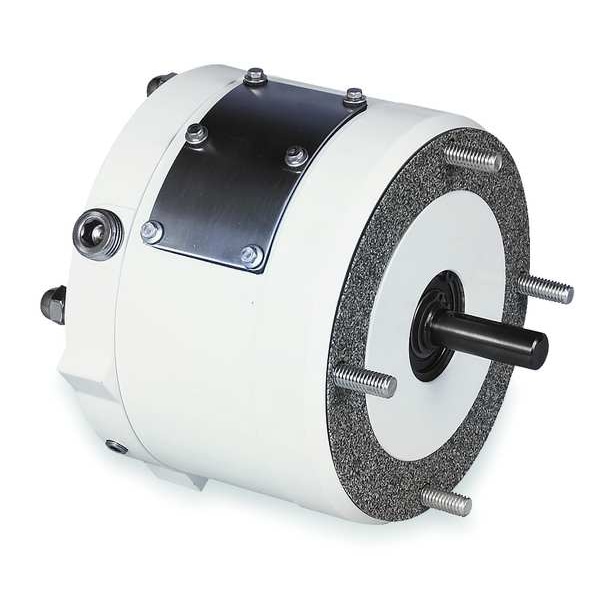

Dayton Brake, Motor, 6 Ft Lb 1L389 - main

Brake, Motor, 6 Ft Lb

  • Mfr # 1L389

  • Zoro # G1976615

product price: $1,022.99
/ea
Free Shipping & Returns

Key Features

Type
C- Face Magnetic Disc
For Use With
Single Phase Motors, When Wired per Instructions
Shaft Dia. (In.)
5/8 in
Coil Volts
115/208-230V AC Or 110/208-220V AC
Static Torque (Ft.-Lb.)
6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1L389
Zoro #
G1976615
UPC #
190735142264
Country of Origin
United States

Dimensions

Shaft Dia. (In.)
5/8 in
Shaft Length
2 in
Bolt Circle Diameter
5.875 in
Outside Diameter
6.88 in
Lead Length
15 in
Keyway Depth
3/32 in
Overall Length
6.94 in
Shaft Diameter
5/8 in
Keyway Width
3/16 in

Details

Item
Washdown Brake
Type
C- Face Magnetic Disc
For Use With
Single Phase Motors, When Wired per Instructions
Coil Volts
115/208-230V AC Or 110/208-220V AC
Static Torque (Ft.-Lb.)
6
NEMA/IEC Frame
56C/140TC
Enclosure
Totally Enclosed
Max. RPM
3,450 RPM
Application
Door Openers, For Rapid Stopping and Holding Power Conveyors, General Machine Drives
Lever Type
Manual
Converts
NEMA C-face motors and gearmotors to brake motors or brake gearmotors
Voltage @ 50 Hz
110/208-220
Service Factor
1
Max. HP @ 1725 RPM
2 hp
Mounts On
NEMA C Face Motor or Between Motor and Reducer
Max. HP @ 3450 RPM
3 hp
Finish
White Epoxy Paint
Voltage @ 60 Hz
115/208-230
Hz
60/50
Agency Compliance
BISSC Certified, Complies with 3A Dairy Standards, Complies with NEMA Definition MG1-1.26.5, CSA, USDA Approved
Brake Mouting Position
Horizontal
Phase
Single
Ambient (C)
40 Degrees C
Lever Release
Manual
Frequency
50 Hz, 60 Hz
Standards
BISSC Certified, Complies with 3A Dairy Standards, Complies with NEMA Definition MG1-1.26.5, CSA Certified, USDA Approved
Maximum Speed
3,450 RPM
Static Torque
6 ft-lb
Operating Voltage
110/208-220V AC @ 50 Hz, 115/208-230V AC @ 60 Hz
Housing Material Finish
White Epoxy Paint
Motor Frame Designation
140TC NEMA
For Environment
Food Production, Washdown
Clutch/Brake Type
C-Face Magnetic Disc
Horsepower @ RPM
2 hp @ 1725 RPM, 3 hp @ 3450 RPM
Continuous Duty
Yes
Mounting Orientation
Horizontal
Coil Voltage
110/208-220V AC @ 50 Hz, 115/208-230V AC @ 60 Hz
Enclosure Type
Totally Enclosed
Maximum Ambient Temperature
40 Degrees C

Description

Brake, Clutch/Brake Type C-Face Magnetic Disc, Coil Voltage 110/208-220V AC @ 50 Hz, 115/208-230V AC @ 60 Hz, Operating Voltage 110/208-220V AC @ 50 Hz, 115/208-230V AC @ 60 Hz, Enclosure Type Totally Enclosed, Static Torque 6 ft-lb, Motor Frame Designation 140TC NEMA, Horsepower @ RPM 2 hp @ 1725 RPM, 3 hp @ 3450 RPM, Shaft Diameter 5/8 in, Maximum Speed 3,450 RPM, Mounting Location Between Motor and Reducer, NEMA C Face Motor, For Use With Single Phase Motors, When Wired per Instructions
