  9. Bronze/Brass 3 HP Centrifugal Pump 230V
Shop All Straight Centrifugal High Flow Pumps
Dayton

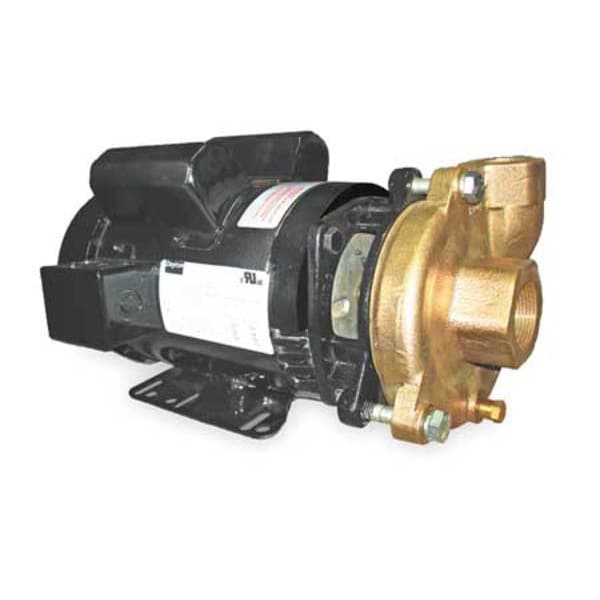

Bronze/Brass 3 HP Centrifugal Pump 230V

product price: $1,343.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP - Pumps 3 hp
  • Voltage - Pumps 240V AC
  • Phase - Pumps 1
  • Housing Material - Pumps Brass, Bronze
  • Inlet Size - Pumps 2 in NPT
See all product information

Product Information

Dimensions

Inlet Size - Pumps 2 in NPT
Outlet Size - Pumps 1-1/2 in NPT
Max. Dia. Solids 1/2 in
Length 14 13/16 in
Height 7 in
Width 7 5/8 in
Manufacturers Warranty Length 1 yr
Overall Length 17.5 in
Overall Height 7 in
Overall Width 8 in
Compatible Discharge Pipe Size 1 1/2 in
Compatible Intake Pipe Size 2 in
Manufacturer Warranty Length 1 yr
Solid Diameter (Maximum) 0.5 in

Details

HP - Pumps 3 hp
Voltage - Pumps 240V AC
Phase - Pumps 1
Housing Material - Pumps Brass, Bronze
Max. Pressure - Pumps 32 psi
Max. Head 74 ft
Motor Enclosure - Pumps Totally Enclosed Fan-Cooled
Phase Single
GPM of Water @ 50 Ft. of Head 110
Voltage 230
Impeller Material Brass, Bronze
Max. Case Pressure 200 psi
Inlet 2" NPT
Max. Specific Gravity 1.0
Inlet Pressure 200 psi
Motor Type Capacitor-Start
Item - Straight Centrifugal Pumps Straight Centrifugal High Flow Pump
GPM of Water @ 70 Ft. of Head 35
GPM of Water @ 10 Ft. of Head 170
Duty Continuous
Agency Compliance c UL us
Seal Material Buna-N
Motor Enclosure Totally Enclosed Fan Cooled (TEFC)
Motor RPM 3450
Frame 56J
Min. GPM @ Head 35 gpm @ 70 ft
Amps -/12.5
GPM of Water @ 30 Ft. of Head 146
Max. Pressure 32.03 psi
Wetted Materials Brass, Bronze, Buna-N, Carbon, Ceramic, Stainless Steel
Includes Manual
Hz 60
Item Centrifugal Pump
GPM of Water @ 60 Ft. of Head 82
Housing Material Bronze, Brass
GPM of Water @ 25 Ft. of Head 154
HP 3
GPM of Water @ 15 Ft. of Head 166
Outlet 1-1/2" NPT
GPM of Water @ 40 Ft. of Head 130
Max. Liquid Temp. 200 Degrees F
Bearing Type Ball
Port Rotation 4 Position Increments
GPM of Water @ 20 Ft. of Head 162
Best Efficiency GPM @ Head 95 gpm @ 57 ft
Impeller Type Semi Open
Max. GPM @ Head 170 gpm @ 10 ft
Best Efficiency Range GPM @ Head 30 to 140 gpm @ 75 to 35 ft
Features Continuous High Pressure Circulation
Standards cULus Listed
Minimum Media Temperature 40 Degrees F
Minimum Flow Rate 35 gpm
Shaft Material 304 Stainless Steel
Motor Frame Designation 56J
Discharge Rotation 90 Degrees Increments
Duty Cycle Continuous
Best Efficiency Head 57 ft
Discharge Type NPT
For Use With Potable Systems No
Frequency 60 Hz
Impeller Design Semi-Open
Horsepower 3 hp
Pumping Application Aggressive Liquid Applications and Other General Purpose Pumping, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Utility, Water Circulation
Nameplate Voltage 230V AC
Specific Gravity (Maximum) 1
Flow Rate @ 15 ft of Head (Maximum) 166 gpm
Flow Rate @ 10 ft of Head (Maximum) 170 gpm
Pump Housing Material Bronze
Wetted Material Brass, Bronze, Buna-N, Carbon, Ceramic, Stainless Steel
Shut Off Pressure (Maximum) 32 psi
Flow Rate @ 50 ft of Head (Maximum) 110 gpm
Flow Rate @ 70 ft of Head (Maximum) 35 gpm
Intake Type NPT
Maximum Flow Rate 170 gpm
Maximum Feet of Head 74 ft
Maximum RPM 3,450 RPM
Seal Type Mechanical
Flow Rate @ 40 ft of Head (Maximum) 130 gpm
Compatible with Media Type Non-Flammable Liquids
Maximum Media Temperature 200 Degrees F
Flow Rate @ 60 ft of Head (Maximum) 82 gpm
Flow Rate @ 20 ft of Head (Maximum) 162 gpm
Feet of Head (Minimum) 10 ft
Best Efficiency Flow 95 gpm
Flow Rate @ 30 ft of Head (Maximum) 146 gpm

Description

Centrifugal Pump, Phase Single, Pump Housing Material Bronze, Horsepower 3 hp, Nameplate Voltage 230V AC, Flow Rate @ 40 ft of Head (Maximum) 130 gpm, Flow Rate @ 60 ft of Head (Maximum) 82 gpm, Maximum Feet of Head 74 ft, Compatible Intake Pipe Size 2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 170 gpm, Flow Rate @ 10 ft of Head (Maximum) 170 gpm, Flow Rate @ 15 ft of Head (Maximum) 166 gpm
