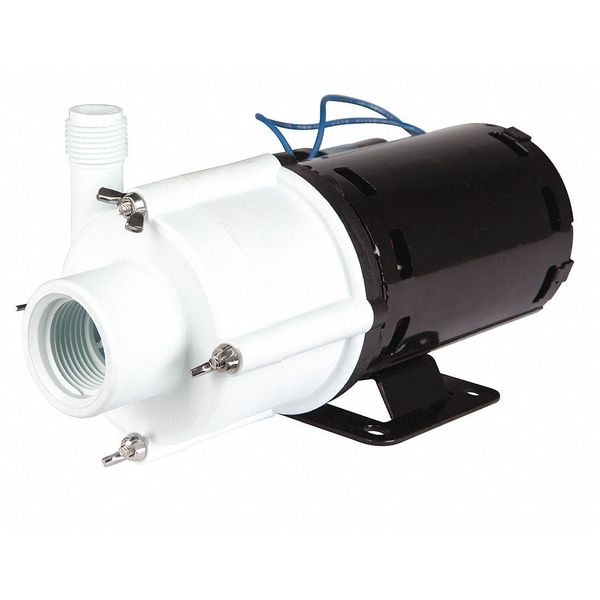

1/10 HP Polypropylene Magnetic Drive Pump 115V 1" FPT

  • Mfr # 582503

  • Zoro # G2907265

product price:
$
350.99
/ea
Free Shipping & Returns

Key Features

HP
1/10 hp
Voltage
115
Inlet
1 in FPT
Outlet
1/2 in FPT
Max. Head
24.3 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
582503
Zoro #
G2907265
UPC #
010121829268
Country of Origin
Mexico

Dimensions

Length
9.6 in
Width
5 1/2 in
Cord Length
6 ft
Height
5 in
Overall Width
5.5 in
Overall Length
9.6 in
Overall Height
4.9 in
Discharge Pipe Size
1/2 in
Manufacturers Warranty Length
1 yr
Intake Pipe Size
1 in
Inlet Diameter
1 in
Motor Frame Size
3.3
Impeller Diameter
1 83/100 in
Discharge Diameter
1/2 in
Wire Rope Length
9.6 in

Details

Item
Magnetic Drive Pump
HP
1/10 hp
Voltage
115
Inlet
1 in FPT
Outlet
1/2 in FPT
Max. Head
24.3 ft
Operating Pressure
10.5 psi
Housing Material
Glass-Filled Polypropylene
GPM of Water @ 6 Ft. of Head
12.8 gpm
GPM of Water @ 3 Ft. of Head
13.5 gpm
Design
Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
Temp. @ 20 psig
90 Degrees F
Temp. @ 0 psig
150 Degrees F
GPM of Water @ 15 Ft. of Head
9.2 gpm
Bearing Type
Thrust
Max. Specific Gravity
1.1
Impeller Material
Polypropylene
Motor Enclosure
Open Air Over
Max. Viscosity
100 SSU
GPM of Water @ 18 Ft. of Head
7.5 gpm
GPM of Water @ 9 Ft. of Head
11.8 gpm
Temp. @ 10 psig
120 Degrees F
Full Load Amps
1.7 A
GPM of Water @ 24 Ft. of Head
1 gpm
Motor Type
Permanent Split Capacitor
Series
MD-SC
Mounting
Horizontal
Gasket Material
Buna-N
Application
For Mild Chemicals at Moderate Temperature, Eliminates Seal-caused Friction Loss, Wear, Contamination and Leakage
Temp. @ 30 psig
70 Degrees F
Cord Type
3-conductor SJP
Flow Rate @ 24 ft of Head (Maximum)
5 gpm
Intake Pipe Type
FNPT
Frequency
60 Hz
Discharge Pipe Type
NPT
Flow Rate @ 3 ft of Head (Maximum)
13.5 gpm
Viscosity (Maximum)
100 SUS
Flow Rate @ 18 ft of Head (Maximum)
13 gpm
Operating Pressure (Maximum)
10.5 psi
Horsepower (Maximum)
1/10 hp
Nameplate Voltage
115V AC
Full Load Current
1.7 A
Flow Rate @ 6 ft of Head (Maximum)
12.8 gpm
Feet of Head (Maximum)
24.3 ft
Flow Rate @ 15 ft of Head (Maximum)
9.1 gpm
Specific Gravity (Maximum)
1.1
Ambient Temperature (Maximum)
77 Degrees F
Motor Mounting Type
Horizontal
Phase
Single
Media Temperature (Maximum)
150 Degrees F
Flow Rate @ 9 ft of Head (Maximum)
11.8 gpm
Best Efficiency Head
15 ft
Shaft Seal Type
Sealless
Best Efficiency Flow
9 gpm
Pump Design
End Suction
Motor Design
Permanent Split Capacitor
Media Temperature - Minimum
32 Degrees F
Priming
Manual
Pump Drive Configuration
Close-Coupled
Pumping Application
Chemical Transfer
Media Temperature - Maximum
150 Degrees F
Chemical Compatibility
Ambient Temperature - Minimum
32 Degrees F
Ambient Temperature - Maximum
77 Degrees F
Mounting Orientation
Horizontal
Shut Off Pressure - Maximum
10.5 psi
Flow Rate (Maximum)
14 gpm
Pump Mounting Style
Base-Mounted
Inlet Standard
FNPT
Drive Coupling Type
Magnetic Coupling
Hazardous Location Class
Not Rated
Number of Stages
1
Case Pressure - Maximum
10.5 psi

Description

The LITTLE GIANT PUMP - 582503 is a magnetic drive centrifugal pump from the MD-SC Series for circulating semi-corrosive solutions in in-line, non-submersible applications. It is designed for mild chemicals at moderate temperature and uses a seal-less magnetic drive to eliminate seal-caused friction loss, wear, contamination, and leakage. The pump has a glass-filled polypropylene housing, volute, and impeller, along with a ceramic shaft and thrust washers, and it is configured for gravity-feed operation with the inlet positioned below the liquid level.

Key Features of the LITTLE GIANT PUMP - 582503:

  • Magnetic drive design: Seal-less construction for circulating semi-corrosive liquids such as alkalis, acids, and solvents.
  • Motor: 1/10 hp open fan cooled permanent split capacitor motor, 115V AC, single phase, 60 Hz.
  • Flow and head: Up to 13.5 gpm with a maximum head of 24.3 ft.
  • Port sizes: 1 in FNPT inlet and 1/2 in FPT outlet.
  • Materials: Glass-filled polypropylene housing and impeller with ceramic shaft and thrust washers.
  • O-ring/gasket material: Nitrile (Buna-N).
  • Capacity limits: Maximum specific gravity 1.1 and maximum viscosity 100 SUS.
  • Temperature limits: Maximum media temperature 150 degrees F and maximum ambient temperature 77 degrees F.
  • Operating pressure: Maximum 10.5 psi.
  • Installation: Horizontal mounting, in-line, non-submersible, gravity-feed design.
  • Cord: 6 ft, 3-conductor SJP cord.
